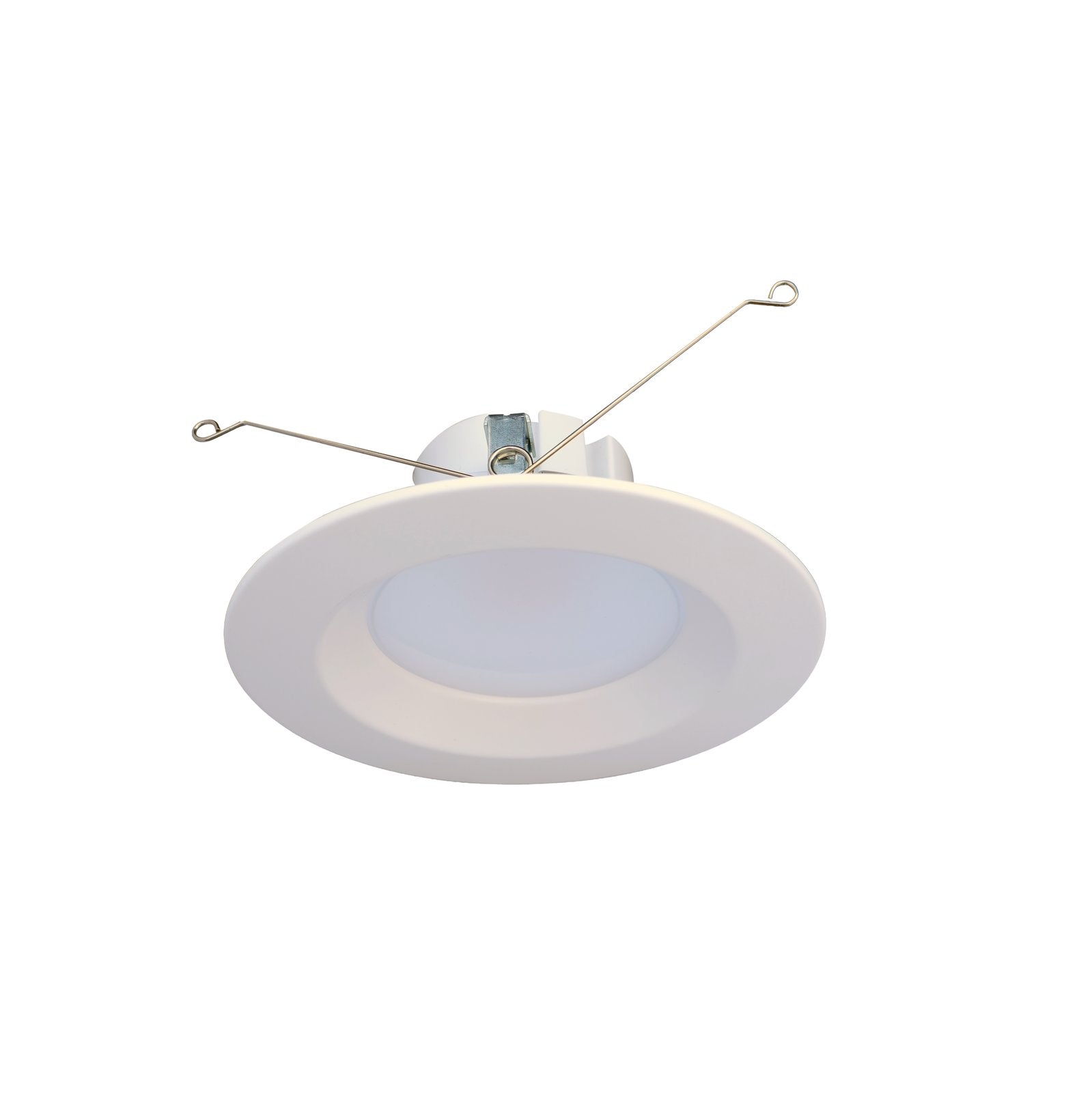

MW Lighting MRD614SM-5CCT 14W Retrofit Downlight 5-CCT Selectable

Product Overview

The MW Lighting MRD614SM-5CCT is a 6-inch LED retrofit downlight that delivers 1,100 lumens at 14W with field-selectable color temperature. It is designed for recessed ceiling lighting in residential and light-commercial spaces.

This single-SKU unit offers five CCT choices (2700K, 3000K, 3500K, 4000K, 5000K), 90+ CRI, TRIAC (forward-phase) dimming compatibility, and holds ETL, ENERGY STAR, and Title 24 (JA8) listings for code-compliant installations.

Key Features

• 6 in LED retrofit downlight — 14W, 1,100 lm
• Field-selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• 90+ CRI for accurate color rendering
• TRIAC forward-phase dimming for standard wall dimmers
• Certifications: ETL, ENERGY STAR, Title 24 (JA8)

What this fixture does

The MRD614SM-5CCT is a 6-inch LED retrofit downlight designed to replace existing recessed cans or be installed in new and remodel ceilings. It produces 1,100 lumens while consuming 14 watts, providing general and task downlighting with a flush, recessed aperture.

Applications and typical use cases

Use this downlight for residential and light-commercial recessed ceiling lighting where a clean, flush appearance is desired. The 5-CCT selectable option makes it suitable where different color temperatures are needed across spaces or when a single SKU must cover multiple CCT requirements.

• Recessed ceiling lighting in homes, apartments, and offices
• Retrofit replacements for existing 6" recessed cans
• New-construction and remodel ceilings
• General and task downlighting

Performance and light output

This model delivers 1,100 lumens from a 14W LED engine, providing energy-efficient light with high color fidelity. The fixture is rated at 90+ CRI to render finishes and skin tones more accurately.

• Lumen output: 1,100 lm
• Power: 14W
• Color rendering: 90+ CRI

Dimming and controls

The MRD614SM-5CCT supports TRIAC forward-phase dimming and is intended to be used with standard residential wall dimmers that are rated for LED loads.

• Dimming type: TRIAC (forward-phase)
• Pair with a TRIAC dimmer rated for LED loads

Certifications and code compliance

This downlight carries ETL and ENERGY STAR listings and is Title 24 (JA8) certified, supporting installations that require recognized safety and energy efficiency certifications.

• ETL listed
• ENERGY STAR listed
• Title 24 (JA8) listed

Compatibility and installation notes

Confirm the ceiling aperture and the existing recessed can or rough-in opening match a 6-inch downlight retrofit before ordering. The unit operates on 120V and includes a field-selectable CCT switch to choose among five color temperatures.

• Size: 6 in recessed retrofit
• Voltage: 120V
• Field-selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K

Before You Order

Confirm the model number and quantity required before ordering. Verify the ceiling aperture and rough-in opening are compatible with a 6-inch retrofit downlight and select a TRIAC dimmer rated for LED loads if dimming is required.

• Confirm model: MRD614SM-5CCT
• Verify 6 in ceiling aperture / existing recessed can compatibility
• Pair with a TRIAC (forward-phase) dimmer rated for LED loads
