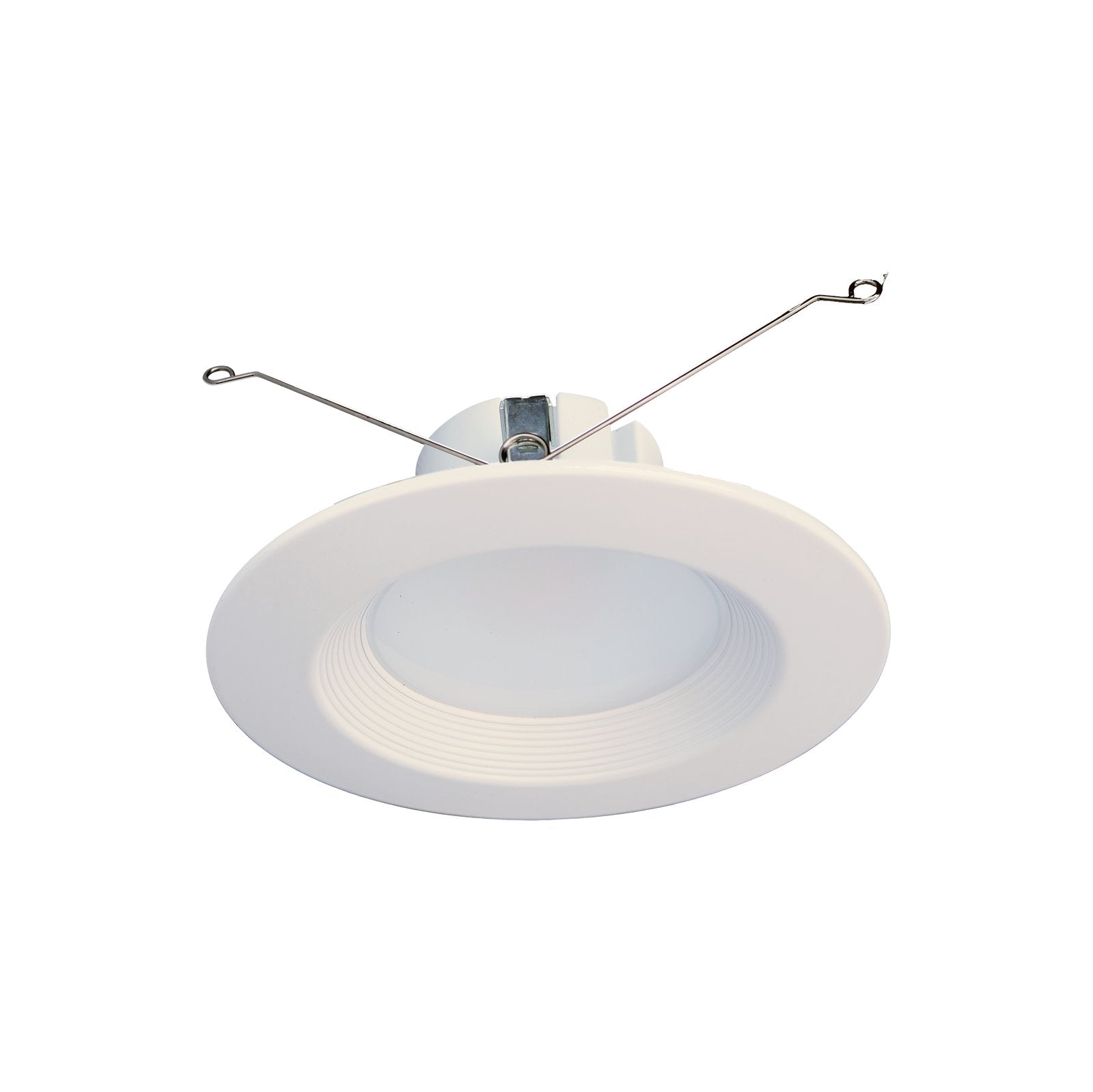

MW Lighting MRD614BA-5CCT 14W Retrofit Downlight 5-CCT Selectable

Product Overview

The MW Lighting MRD614BA-5CCT is a 6-inch LED retrofit downlight for recessed ceiling lighting. It operates at 120V and delivers 1,100 lumens at 14W.

Choose among five field-selectable color temperatures from 2700K to 5000K. The downlight also features 90+ CRI and TRIAC dimming.

Key Features

• 14W output of 1,100 lumens
• Field-selectable 2700K, 3000K, 3500K, 4000K, or 5000K color temperature
• 90+ CRI
• TRIAC dimming
• ETL, ENERGY STAR, and Title 24 (JA8) listed

Output and Selectable Color Temperature

The MRD614BA-5CCT produces 1,100 lumens at 14W. Its field-selectable CCT settings are 2700K, 3000K, 3500K, 4000K, and 5000K, allowing the color temperature to be selected at the fixture.

• Color rendering: 90+ CRI

Voltage and TRIAC Dimming

This retrofit downlight operates on 120V and uses TRIAC dimming. Pair it with a TRIAC dimmer rated for LED loads.

Recessed Lighting Applications and Fit

The 6-inch MRD614BA-5CCT is listed for recessed ceiling lighting in residential and light-commercial spaces. Applications include retrofitting existing recessed cans, new-construction and remodel ceilings, and task or general downlighting.

Confirm that the ceiling aperture and rough-in opening match the listed size before ordering. The product information does not specify compatibility with particular recessed-can models.

Listings

The MRD614BA-5CCT is listed as ETL, ENERGY STAR, and Title 24 (JA8).

Before You Order

Confirm the ceiling aperture and rough-in opening match the 6-inch listed size. For dimming, select a TRIAC dimmer rated for LED loads.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MRD614BA-5CCT 14W Retrofit Downlight 5-CCT Selectable. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
