MW Lighting MGD036W-5CCT 6W Canless Gimbal Downlight 5-CCT Selectable

Product Overview

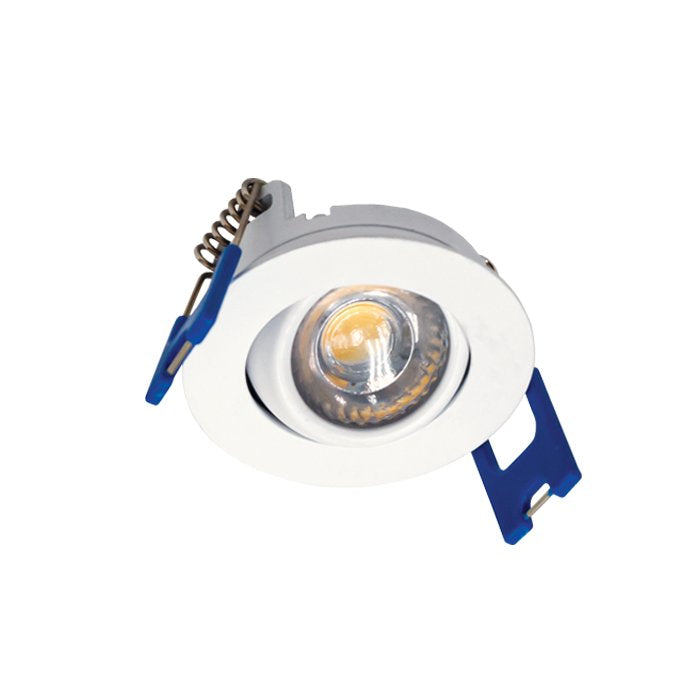

The MW Lighting MGD036W-5CCT is a 3-inch canless gimbal LED downlight for recessed ceiling lighting. It uses 6W and delivers 370 lumens.

Choose from five field-selectable color temperatures, from 2700K to 5000K. The downlight operates on 120V and supports TRIAC dimming.

Key Features

• 3-inch canless gimbal LED downlight
• 6W power consumption and 370-lumen output
• Field-selectable 2700K, 3000K, 3500K, 4000K, or 5000K color temperature
• 90+ CRI
• 120V operation with TRIAC dimming
• ETL, ENERGY STAR, and Title 24 (JA8) listed

Output and Selectable Color Temperature

The MGD036W-5CCT delivers 370 lumens at 6W and has a 90+ CRI. Its field-selectable color temperature settings are 2700K, 3000K, 3500K, 4000K, and 5000K.

Voltage and Dimming

This canless gimbal downlight operates on 120V and uses TRIAC dimming. The product information recommends pairing it with a TRIAC dimmer rated for LED loads.

Where to Use the MGD036W-5CCT

The MGD036W-5CCT is listed for recessed ceiling lighting in residential and light-commercial spaces. Stated applications include existing recessed-can retrofits, new-construction and remodel ceilings, and task or general downlighting.

Listings and Designations

The product is listed as ETL and ENERGY STAR, and carries the Title 24 (JA8) designation.

Before You Order

Confirm the model number and quantity required before ordering. Check that the ceiling aperture and rough-in opening match the listed size, and select a TRIAC dimmer rated for LED loads.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MGD036W-5CCT 6W Canless Gimbal Downlight 5-CCT Selectable. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
