MW Lighting MGD026W-5CCT 6W Canless Gimbal Downlight 5-CCT Selectable

Product Overview

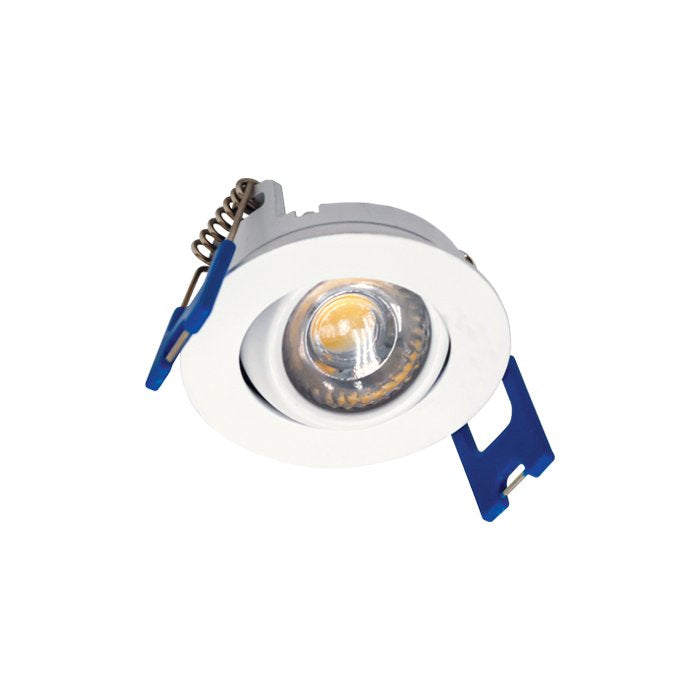

The MW Lighting MGD026W-5CCT is a 2-inch canless gimbal LED downlight that produces 370 lumens from 6 watts and offers field-selectable color temperatures (2700K/3000K/3500K/4000K/5000K).

Designed for recessed ceiling lighting, the fixture features high color rendering (90+ CRI), TRIAC forward-phase dimming compatibility, and ETL, ENERGY STAR, and Title 24 (JA8) listings for code-compliant installations.

Key Features

• 6W power consumption producing 370 lumens (efficiency and lumen output per SKU).
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K — one SKU replaces multiple fixed-color SKUs.
• High color fidelity at 90+ CRI for truer finishes and skin tones.
• TRIAC forward-phase dimming compatible with standard residential wall dimmers (use dimmers rated for LED loads).
• Canless gimbal design for adjustable aim and a flush recessed ceiling aperture.
• Certifications: ETL, ENERGY STAR, Title 24 (JA8).

Function and intended use

The MGD026W-5CCT is a 2-inch canless gimbal LED downlight intended for recessed ceiling lighting in residential and light-commercial spaces. Its adjustable gimbal allows directional aiming for task or accent lighting while maintaining a recessed, low-profile aperture.

• Suitable for general downlighting, task lighting, retrofit into existing recessed locations, and new-construction or remodel ceilings.
• Canless design means the fixture installs without a separate can housing where local codes and ceiling construction permit.

Light output and color performance

This fixture produces 370 lumens at 6 watts and offers a field-selectable color temperature range to match different spaces and preferences.

• Lumens: 370 lm at 6W.
• Selectable CCTs: 2700K, 3000K, 3500K, 4000K, 5000K (field-selectable).
• Color rendering: 90+ CRI for accurate color reproduction.

Electrical and dimming requirements

The MGD026W-5CCT is rated for 120V operation and supports TRIAC forward-phase dimming to pair with common residential wall dimmers.

• Line voltage: 120V.
• Dimming: TRIAC (forward-phase).
• Recommendation: Use a TRIAC/forward-phase dimmer that is specifically rated for LED loads to ensure reliable dimming performance.

Mounting and installation notes

Confirm ceiling aperture and rough-in opening are compatible with this 2-inch canless downlight before ordering and installation. Installation practices may vary by ceiling construction and local code.

• Form factor: 2-inch recessed canless gimbal downlight.
• Gimbal adjustment allows aiming after installation for targeted lighting.
• For dimming performance, pair with dimmers rated for LED loads.

Certifications and code compliance

The fixture carries ETL, ENERGY STAR, and Title 24 (JA8) listings which support use in code-compliant installations and may assist with energy program requirements where applicable.

• Certifications: ETL listed, ENERGY STAR, Title 24 (JA8).

Before You Order

Confirm the model number and quantity required before ordering. Verify the ceiling aperture and rough-in opening match the fixture's 2-inch canless size and plan to use a TRIAC/forward-phase dimmer rated for LED loads if dimming is required.

• Confirm ceiling construction is suitable for canless installations and complies with local code.
• If replacing existing recessed cans, verify clearances and mounting method before purchase.
• For dimming, choose a dimmer specified for LED loads and compatible with forward-phase (TRIAC) operation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MGD026W-5CCT 6W Canless Gimbal Downlight 5-CCT Selectable. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
