MW Lighting MBLPL14-WS3CCT 20/30/40W Selectable Backlit Panel 3-CCT Selectable
MW Lighting MBLPL14-WS3CCT 20/30/40W Selectable Backlit Panel 3-CCT Selectable
Regular price
$52.20
Regular price
Sale price
$52.20
SKU:MBLPL14-WS3CCT
Quantity
Couldn't load pickup availability

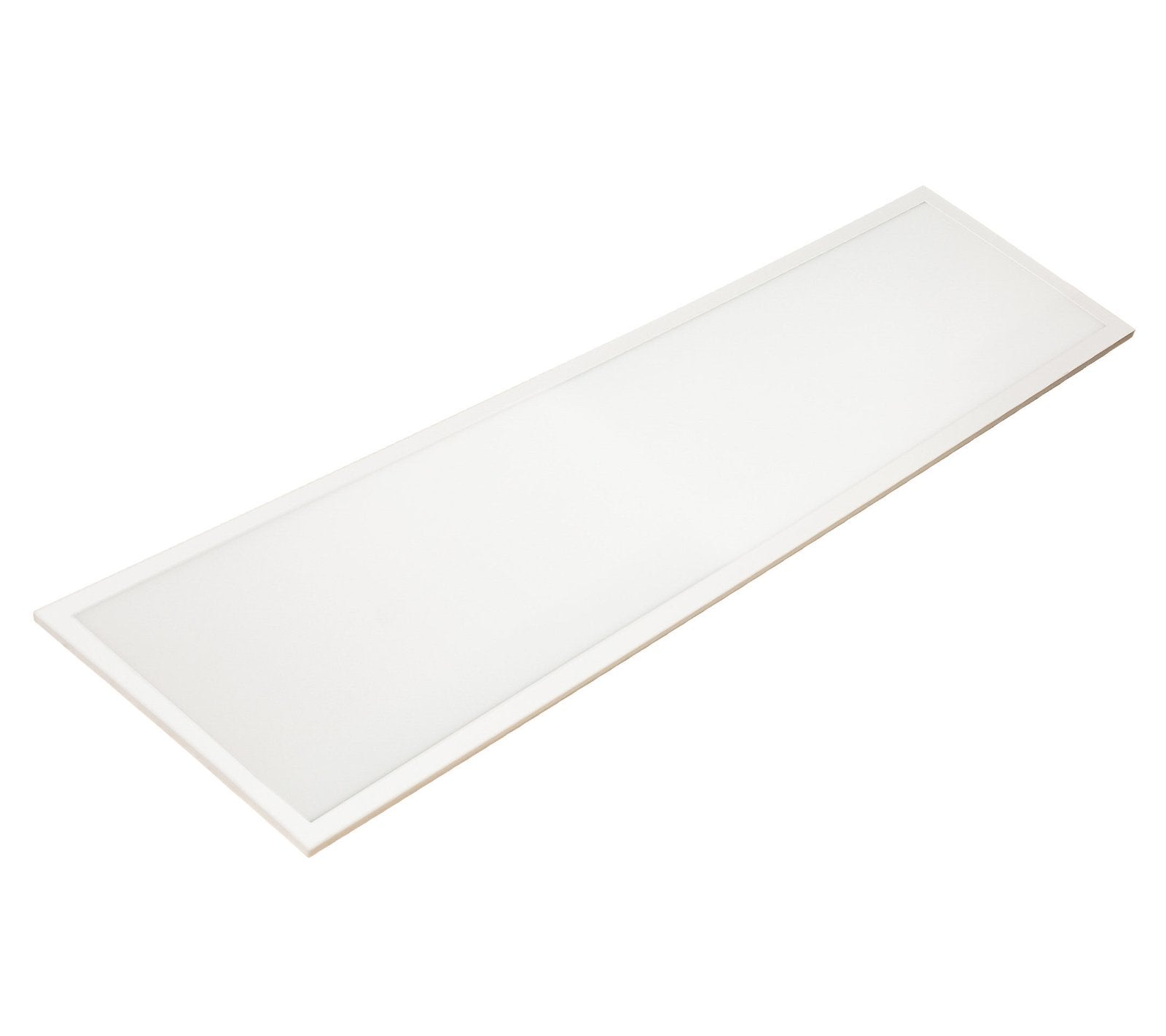

The MW Lighting MBLPL14-WS3CCT is a 1x4 led backlit panel that delivers 4,400 lm at 40W for surface-mounted ceiling lighting in offices, corridors, and residential rooms. It operates on 120-277V, with field-selectable color temperature.
Key Features
- Selectable wattage lets one fixture cover 20/30/40W on site, tuning output to the target light level
- Field-selectable color temperature spans 3500K / 4000K / 5000K selectable, so a single SKU replaces several stocked color options
- 80+ CRI rendering shows truer finishes, merchandise, and skin tones
- Universal 120-277V input simplifies stocking across single- and three-phase facility circuits
- 0-10V dimming integrates with commercial lighting-control and occupancy systems
- Low-profile housing suits ceilings with limited plenum depth
- UL, DLC listed/qualified for code-driven and rebate projects
Technical Specifications
| Brand | MW Lighting |
|---|---|
| Model / SKU | MBLPL14-WS3CCT |
| Product Type | LED Backlit Panel |
| Size | 1x4 |
| Wattage | 20/30/40W |
| Lumens | 2,200 / 3,300 / 4,400 lm |
| Color Temperature | 3500K / 4000K / 5000K selectable |
| CRI | 80+ |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Certifications | UL, DLC |
Applications
Common applications include:
- Surface-mounted ceiling lighting in offices, corridors, and residential rooms
- Low-profile general lighting where plenum depth is limited
- Retrofit of dated fluorescent fixtures
- Commercial and residential ceilings
Compatibility and Installation Notes
Verify the ceiling-grid or surface-mount opening fits the fixture footprint, and use a 0-10V control for dimming.
Lumera Electric supplies the MW Lighting led backlit panel for low-profile commercial and residential ceiling projects.
