MW Lighting MBLP24-4WS-4CCT 50/60/70/90W Selectable Backlit Panel 4-CCT Selectable

Product Overview

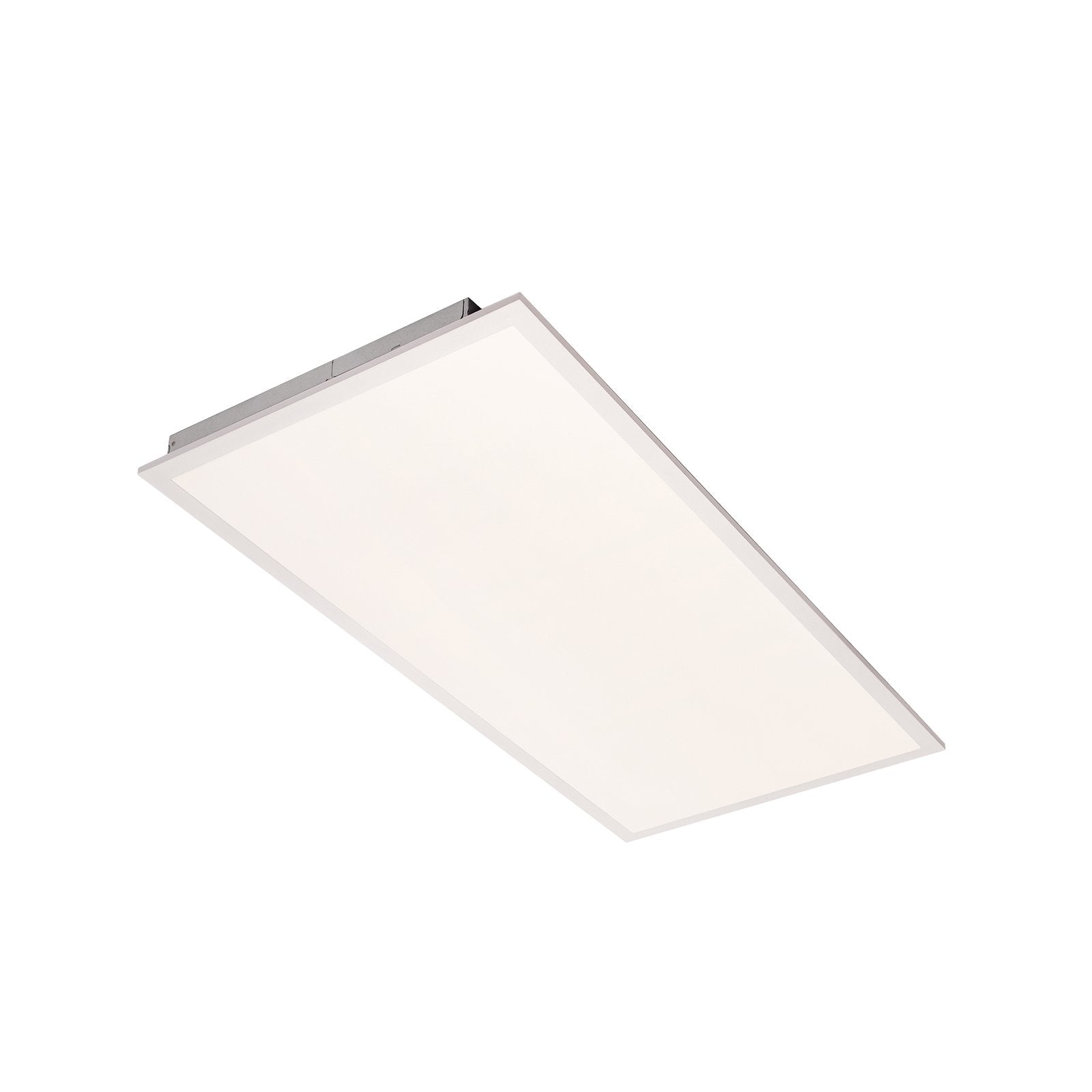

The MW Lighting MBLP24-4WS-4CCT is a 2x4 LED backlit panel with field-selectable wattage (50/60/70/90W) and field-selectable color temperature (3000K, 3500K, 4000K, 5000K).

It provides lumen outputs from 6,000 to 10,000 lm depending on wattage selection, operates on 120–347V, supports 0-10V dimming, and is ETL listed and DLC qualified.

Key Features

• Field-selectable wattage: 50 / 60 / 70 / 90W
• Field-selectable color temperature: 3000K / 3500K / 4000K / 5000K
• Lumen range tied to wattage: 6,000 / 7,000 / 8,000 / 10,000 lm
• 0-10V dimming compatibility
• Wide input voltage: 120–347V
• 80+ CRI
• ETL listed and DLC qualified
• Low-profile housing

What this fixture does

The MBLP24-4WS-4CCT is a low-profile 2x4 LED backlit panel designed for general ceiling lighting where selectable output and selectable color temperature are useful. A single SKU provides multiple lumen and CCT options through field selection.

Performance and light output

Lumen output and color temperature are selectable in the field to match application needs.

• Selectable wattages: 50W, 60W, 70W, 90W
• Reported lumen outputs: 6,000 lm, 7,000 lm, 8,000 lm, 10,000 lm (dependent on wattage selected)
• Selectable CCTs: 3000K, 3500K, 4000K, 5000K
• CRI: 80+

Electrical and control requirements

The fixture accepts a wide input voltage range and supports standard 0-10V analog dimming controls.

• Input voltage: 120–347V
• Dimming: 0-10V (requires a compatible 0-10V control to enable dimming)

Recommended applications

Applications reported for this panel include surface-mounted ceiling lighting and installations where a low-profile panel with selectable output is desirable.

• Surface-mounted ceiling lighting in offices and corridors
• Residential rooms with limited plenum depth
• Retrofit of fluorescent troffers and dated fixtures
• General commercial and residential ceiling lighting where ETL/DLC listings are required

Mounting and installation notes

Verify ceiling opening, footprint, and mounting method before installation. Use a compatible 0-10V control if dimming is required.

• Low-profile housing suits installations with limited plenum depth
• Confirm the fixture footprint fits the ceiling grid or surface-mount opening prior to ordering
• A compatible 0-10V control is required to utilize dimming functionality

Certifications and listings

The product is listed/qualified with common industry programs to support code-driven projects and rebate eligibility where those programs apply.

• ETL listed
• DLC qualified

Before You Order

Verify the fixture footprint matches your ceiling opening and confirm whether a compatible 0-10V control is available if dimming is required.

• Confirm ceiling footprint and plenum depth for low-profile installation
• Ensure a compatible 0-10V control is available if dimming will be used
