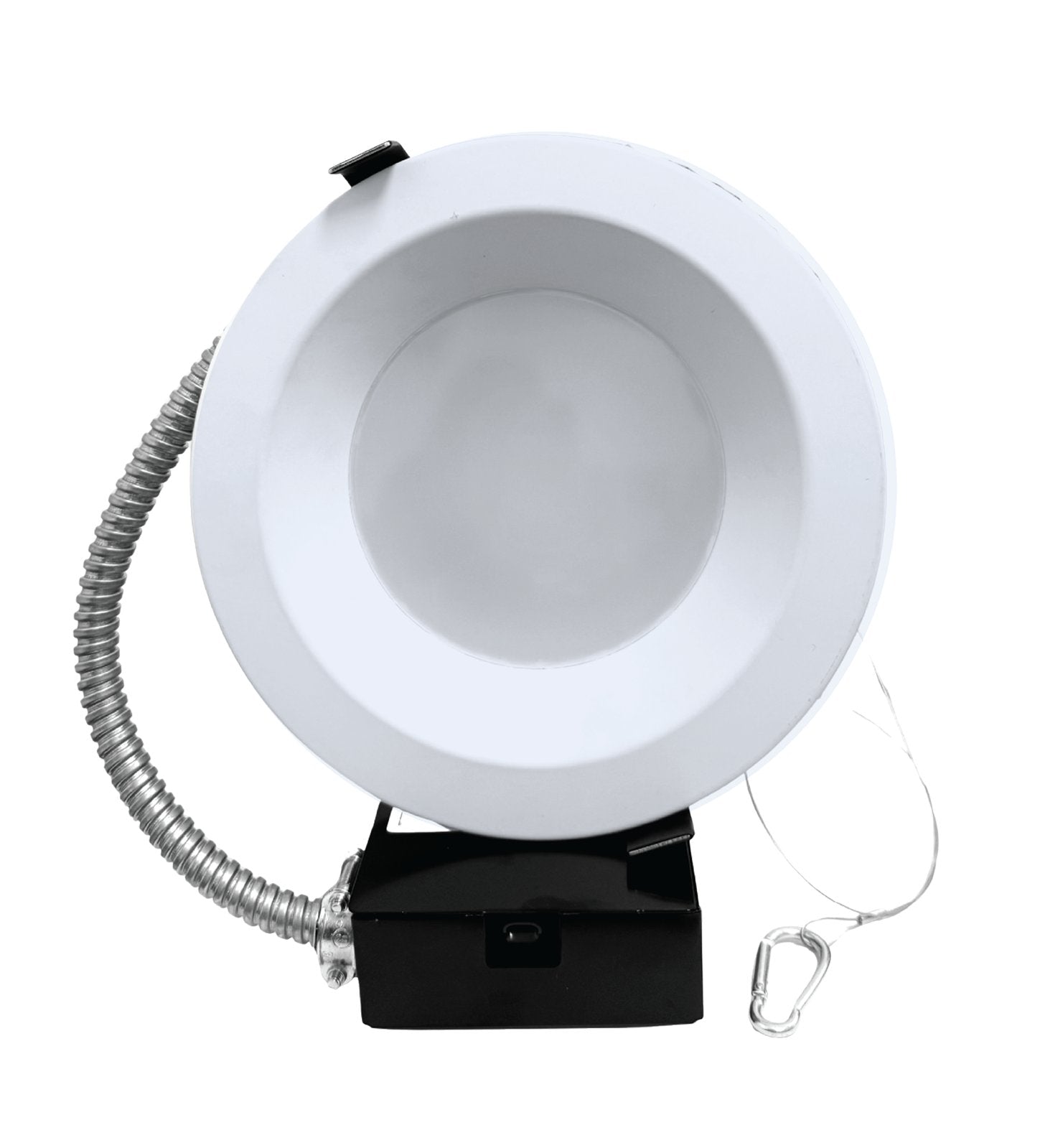

MW Lighting M8CDSM27W-3CCT 16/21/27W Selectable Commercial Downlight 3-CCT Selectable

Product Overview

The MW Lighting M8CDSM27W-3CCT is an 8-inch recessed LED downlight with field-selectable wattage (16/21/27W) and selectable color temperature (3000K/4000K/5000K).

It produces up to 2,524 lumens at the highest setting, operates on 120–277V, and supports TRIAC and 0-10V dimming. The product is listed to UL, ENERGY STAR, and Title 24 (JA8).

Key Features

• Field-selectable wattage: 16W / 21W / 27W
• Selectable CCT: 3000K / 4000K / 5000K
• Lumen outputs: 1,448 lm (16W), 1,953 lm (21W), 2,524 lm (27W)
• Input voltage: 120–277V
• Dimming: TRIAC and 0-10V compatible
• Color rendering: 80+ CRI
• Listings: UL, ENERGY STAR, Title 24 (JA8)

What this fixture does

An 8-inch recessed LED downlight with field-selectable wattage and color temperature to cover multiple output and CCT needs with one SKU.

Output and selectable performance

Select among three wattage settings to change lumen output without replacing the fixture.

• 16W → 1,448 lumens
• 21W → 1,953 lumens
• 27W → 2,524 lumens
• CCT options: 3000K, 4000K, 5000K
• CRI: 80+

Voltage and dimming compatibility

Designed for a wide input range and supporting both common dimming methods.

• Input voltage: 120–277V
• Dimming: TRIAC and 0-10V — use dimmers/controllers rated for LED loads

Applications

Intended for recessed ceiling lighting and suitable for residential and light‑commercial settings, including new construction, remodels, and retrofit of existing cans where the size and rough‑in match.

Listings and compliance

Listed to UL standards and carries ENERGY STAR and Title 24 (JA8) listings.

Before You Order

Verify the 8-inch form factor and confirm the ceiling aperture and rough‑in opening are compatible.

• Confirm ceiling aperture and rough‑in compatibility for an 8 in recessed downlight
• If using dimming, choose TRIAC or 0-10V controls rated for LED fixtures

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting M8CDSM27W-3CCT 16/21/27W Selectable Commercial Downlight 3-CCT Selectable. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
