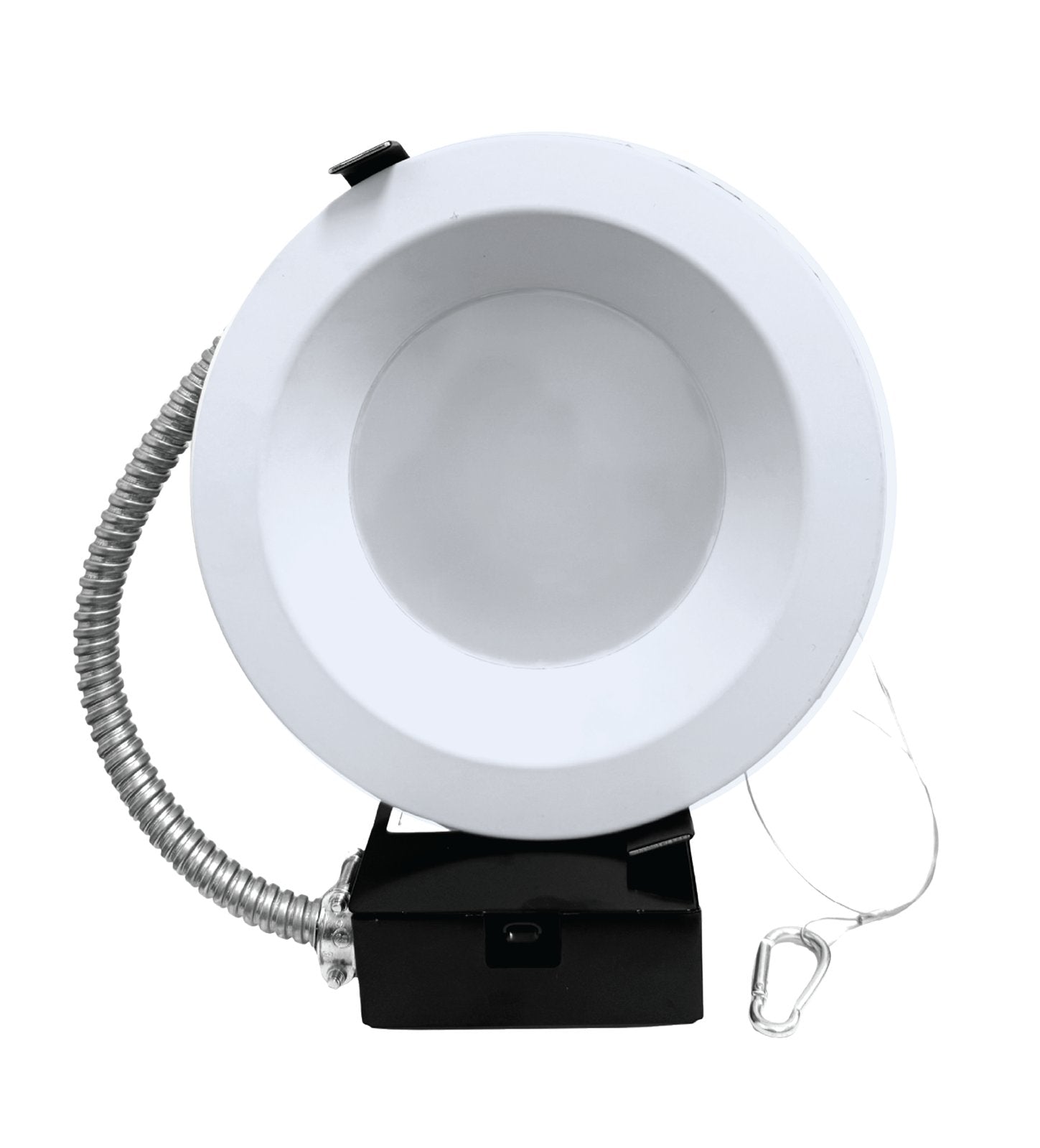

MW Lighting M4CDSM15W-3CCT 9/12/15W Selectable Commercial Downlight 3-CCT Selectable

Product Overview

The MW Lighting M4CDSM15W-3CCT is a 4-inch recessed commercial LED downlight with selectable wattage and color temperature. It is specified for recessed ceiling lighting in residential and light-commercial spaces.

Choose among 9W, 12W or 15W and 3000K, 4000K or 5000K settings. The listed output is 846, 1,128 or 1,410 lumens across the corresponding wattage options.

Key Features

• Selectable power: 9W, 12W or 15W
• Selectable color temperature: 3000K, 4000K or 5000K
• 120-277V input and TRIAC/0-10V dimming
• 80+ CRI; listed certifications include UL, ENERGY STAR and Title 24 (JA8)

Selectable Wattage and Light Output

The M4CDSM15W-3CCT provides three wattage settings, letting the installer select 9W, 12W or 15W. Listed lumen outputs are 846 lumens at 9W, 1,128 lumens at 12W and 1,410 lumens at 15W.

Selectable Color Temperature and CRI

This downlight has field-selectable 3000K, 4000K and 5000K color-temperature settings. Its listed color-rendering rating is 80+ CRI.

Voltage and Dimming

The fixture is rated for 120-277V input and supports TRIAC and 0-10V dimming. Confirm that the selected dimmer is rated for LED loads and matches the intended dimming system.

Recessed Downlight Applications

The 4-inch M4CDSM15W-3CCT is intended for recessed ceiling lighting in residential and light-commercial spaces. Listed uses include existing recessed-can retrofits, new-construction and remodel ceilings, and task or general downlighting.

Before You Order

Confirm the ceiling aperture and rough-in opening match the listed 4-inch size. Select a dimmer rated for LED loads that supports the intended TRIAC or 0-10V control method.
