MW Lighting M12CDLA35W-3CCT 30/40/50W Selectable Commercial Downlight 3-CCT Selectable

Product Overview

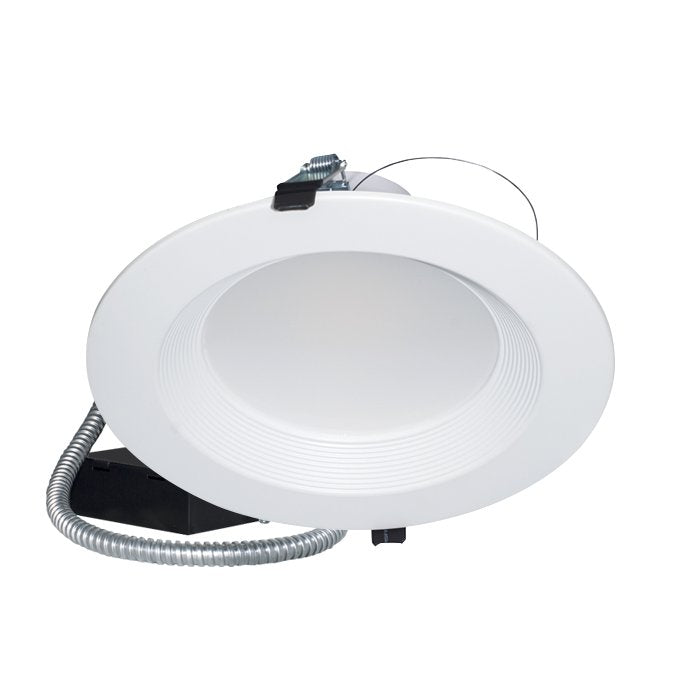

The MW Lighting M12CDLA35W-3CCT is a 12-inch recessed commercial LED downlight with field-selectable wattage and color temperature. Its selectable settings provide 3,000, 4,000, or 5,000 lumens at 30W, 40W, or 50W, respectively.

This model operates on 120–277V and supports 0-10V dimming. It is listed with 80+ CRI, UL, ENERGY STAR, and Title 24 (JA8).

Key Features

• Selectable 30W, 40W, or 50W operation with corresponding 3,000, 4,000, or 5,000 lumen output
• Field-selectable 3000K, 4000K, or 5000K color temperature
• 120–277V input and 0-10V dimming
• 12-inch recessed commercial LED downlight with 80+ CRI

Selectable Wattage, Lumens, and Color Temperature

The M12CDLA35W-3CCT lets the installer select among three wattage and color-temperature settings. The listed lumen output corresponds to each wattage setting.

• 30W: 3,000 lumens
• 40W: 4,000 lumens
• 50W: 5,000 lumens
• Selectable CCT: 3000K, 4000K, or 5000K
• Color rendering: 80+ CRI

Voltage and Dimming

This downlight is specified for 120–277V input and 0-10V dimming. The catalog recommends pairing it with a 0-10V dimmer rated for LED loads.

Recessed Lighting Applications and Fit

The 12-inch recessed downlight is described for ceiling lighting in residential and light-commercial spaces. Listed applications include existing recessed-can retrofits, new-construction and remodel ceilings, and task or general downlighting.

Confirm that the ceiling aperture and rough-in opening match the listed 12-inch size before ordering.

Before You Order

Confirm the ceiling aperture and rough-in opening match the listed 12-inch size. For dimming, the catalog recommends a 0-10V dimmer rated for LED loads.
