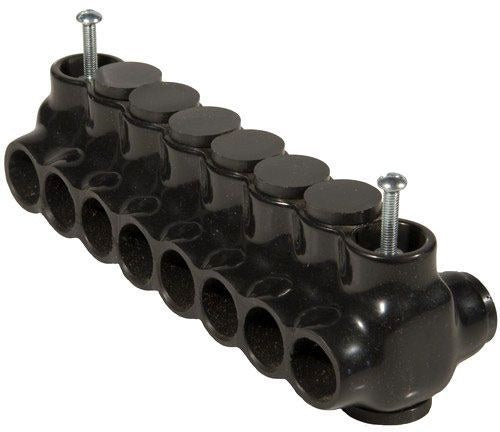

Morris 97816 Black Insulated Connector, Dual Side Entry, Mountable, 4 AWG, 6-Port

(No Ratings)
SKU: 97816
Price: $76.10
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97816 is a mountable, dual side-entry insulated connector with six ports accepting 4–14 AWG conductors. It uses a 6061‑T6 aluminum body with black plastisol high-dielectric insulation and is pre-filled with oxide inhibitor for copper and aluminum conductors.

Rated 600V and listed to UL 486A/486B (service-entrance rated) for indoor use, the 97816 is designed for in-line splicing and multi-tap terminations in panels, gutters, troughs, and junction boxes.

Key Features

  • Six-port, dual side-entry design for one wire per terminal
  • Accepts conductors sized 4–14 AWG
  • CU9AL dual-rated for copper and/or aluminum conductors
  • 6061‑T6 aluminum body pre-filled with oxide inhibitor
  • Black plastisol-dipped high-dielectric insulation (UV rated)
  • 600V voltage rating; temperature range −45°C to 90°C (−49°F to 194°F)
  • UL 486A/486B listed and service‑entrance rated for indoor use
  • Plugs marked with max wire size and designed for easy re-entry for inspection

Function and intended use

The Morris 97816 is a six-port insulated set-screw connector designed for in-line splicing and multi-tap terminations. Its dual side-entry, mountable body accepts one conductor per terminal and facilitates organized terminations where multiple conductors must be joined or distributed.

  • Designed for use in panels, gutters, troughs, and junction boxes
  • Service‑entrance rated for indoor installations

Electrical ratings and conductor compatibility

This connector is rated for 600 volts and supports conductors from 4 AWG down to 14 AWG. It carries a CU9AL dual rating, allowing use with copper or aluminum conductors when installed per applicable codes and practices.

  • Voltage rating: 600V
  • Wire range: 4–14 AWG
  • Conductor compatibility: Copper and/or aluminum (CU9AL)
  • Temperature rating: −45°C to 90°C (−49°F to 194°F)

Installation and handling

Prepare each conductor to the marked strip length, insert one conductor per port, and tighten the set screws to the recommended torque using the matching hex or slotted driver. The connector is pre-filled with oxide inhibitor to protect aluminum terminations and allow re-entry for inspection or troubleshooting.

  • One wire per terminal — plugs are marked with maximum wire size for identification
  • Pre-filled oxide inhibitor supports reliable copper and aluminum connections
  • Re-entry design allows inspection and troubleshooting without destroying the connector

Materials and insulation

The 97816 uses a 6061‑T6 aluminum body for the conductor barrel and is dipped in black plastisol to provide high-dielectric insulation. The plastisol finish is UV rated for durability where exposed to light within indoor-rated installations.

  • Body material: 6061‑T6 aluminum
  • Insulation: black plastisol high-dielectric dip
  • Pre-filled with oxide inhibitor for corrosion protection on aluminum conductors

Typical applications

Use the Morris 97816 for service‑entrance and feeder conductor splices and multi-tap terminations in indoor electrical systems. Typical locations include distribution panels, junction boxes, trunking/gutters, and troughs where a compact, mountable, multi-port connector is required.

  • In-line splicing for service-entrance conductors
  • Multi-tap terminations in panels and junction boxes
  • Feeder conductor splices in gutters, troughs, and similar enclosures

Before You Order

Confirm the Morris catalog number and the quantity required before ordering. Verify that the connector's wire range, CU9AL rating, and indoor service‑entrance listing meet the requirements of your installation and local electrical codes.

  • This SKU is catalog number 97816 and is a 6‑port, dual side‑entry mountable connector.
  • For installations involving aluminum conductors, follow code and torque requirements and use the pre-filled oxide inhibitor as intended.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97816 Black Insulated Connector, Dual Side Entry, Mountable, 4 AWG, 6-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97816
TypeBlack insulated connector, dual side entry, mountable
Wire range4–14 AWG
Ports6
EntryDual side / mountable
ConductorCopper / Aluminum (CU9AL)
InsulationBlack plastisol
Voltage rating600V
Temperature rating−45°C to 90°C (−49°F to 194°F)
CertificationsUL 486A/486B
Material6061‑T6 aluminum
