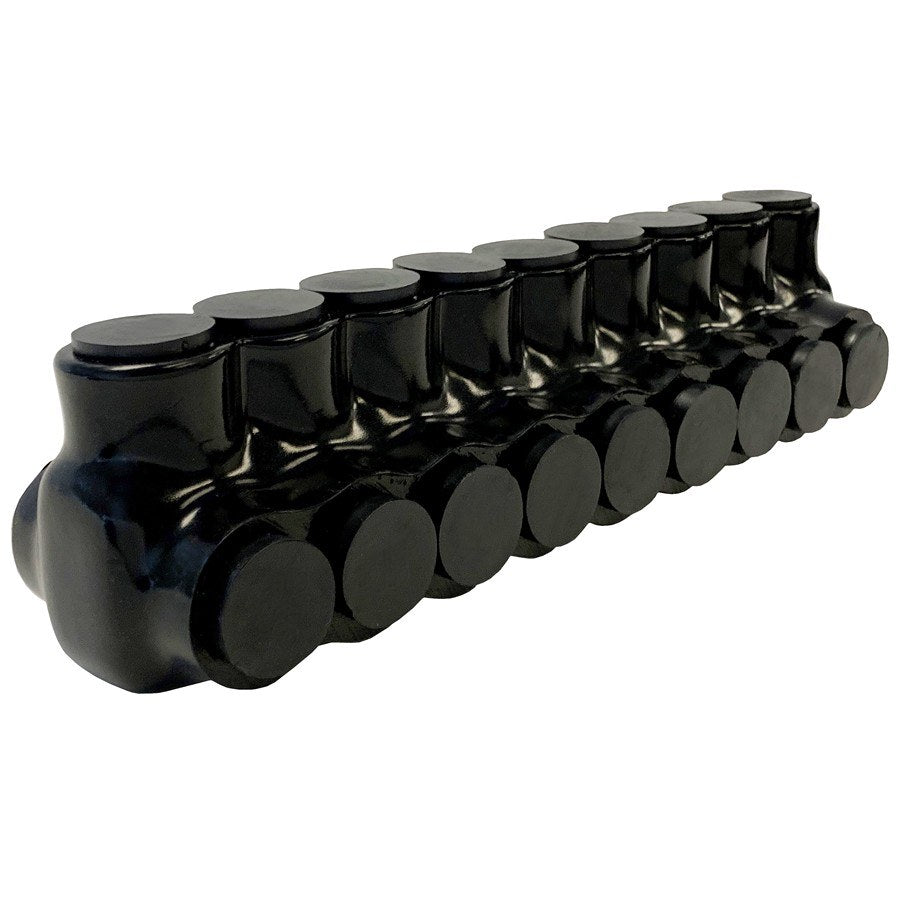

Morris 97699 Black Insulated Connector, Dual Side Entry, 500 MCM, 9-Port

(No Ratings)
SKU: 97699
Price: $177.68
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97699 is a black, insulated, dual-side-entry connector with 9 ports and a 500-4 wire range. It is dual rated for copper and aluminum conductors and rated for 600V.

Its 6061-T6 aluminum body is pre-filled with oxide inhibitor and covered with black plastisol-dipped high-dielectric insulation. The connector is intended for indoor use and is UL 486A/486B listed.

Key Features

  • 9-port, dual-side-entry design with a 500-4 wire range
  • CU9AL dual rated for copper and aluminum conductors
  • 6061-T6 aluminum body pre-filled with oxide inhibitor
  • Black plastisol-dipped high-dielectric insulation
  • 600V rating; rated for use with 90°C cables
  • Plugs marked with maximum wire size; easy re-entry for inspection and troubleshooting

Wire Range and Dual-Side Entry

The Morris 97699 has 9 ports, dual-side entry, and a 500-4 wire range. The connector is identified as a 500 MCM model; check conductor size against the plug marking.

  • One wire per terminal
  • Plugs are marked with the maximum wire size for identification

Copper and Aluminum Compatibility

The 97699 is CU9AL dual rated for copper and aluminum conductors. Its 6061-T6 aluminum body is pre-filled with oxide inhibitor and has black plastisol-dipped high-dielectric insulation.

Electrical Ratings and Use Conditions

This connector is rated 600V and for use with 90°C cables. Its temperature range is -45°C to 90°C (-49°F to 194°F). It is UV rated, UL 486A/486B listed, and service-entrance rated; use is limited to indoor applications.

Applications and Installation

The 97699 is described for in-line splicing and multi-tap terminations of service-entrance and feeder conductors in indoor panels, gutters, troughs, and junction boxes.

For installation, strip each conductor to the marked length, insert one wire per port, and tighten the set screws to the rated torque using the matching hex or slotted driver.

  • Easy re-entry for inspection and troubleshooting

Before You Order

Confirm that the 97699’s 500-4 wire range matches the conductors for your application.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97699 Black Insulated Connector, Dual Side Entry, 500 MCM, 9-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number97699
Connector typeBlack insulated connector, dual side entry
Wire Range500-4
Ports9
ConductorCopper / aluminum (CU9AL)
Housing Material6061-T6 aluminum
InsulationBlack plastisol, high-dielectric
Rated Voltage600V
Temperature Range-45°C to 90°C (-49°F to 194°F)
Cable temperature ratingRated for use with 90°C cables
Environmental and use ratingUV rated; indoor use only
CertificationsUL 486A/486B
Service ratingService entrance rated
