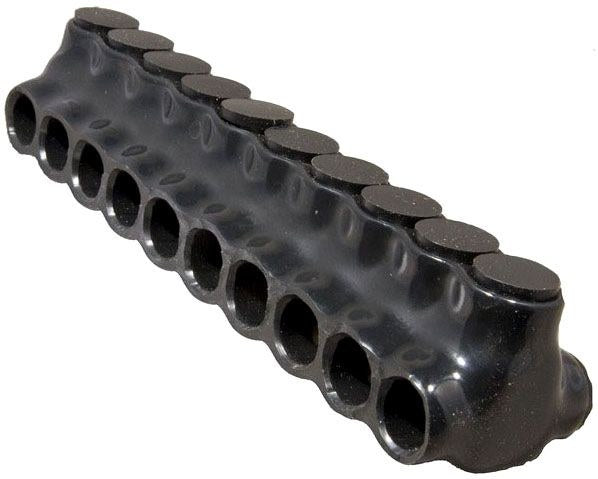

Morris 97690 Black Insulated Connector, Dual Side Entry, 3/0 AWG, 10-Port

(No Ratings)
SKU: 97690
Price: $161.06
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97690 is a black, plastisol-dipped, dual side-entry insulated connector that accepts conductors in the 3/0–6 AWG range and provides 10 ports (one wire per terminal).

It has a 6061‑T6 aluminum body pre-filled with oxide inhibitor, carries a CU9AL dual rating for copper or aluminum conductors, and is listed to UL 486A/486B. Rated 600V with a temperature range of −45°C to 90°C.

Key Features

  • Wire range: 3/0–6 AWG; 10 ports, one wire per terminal
  • CU9AL dual rated for copper and aluminum conductors
  • 6061‑T6 aluminum body pre-filled with oxide inhibitor
  • Black plastisol-dipped high-dielectric insulation
  • Rated 600V; temperature rating −45°C to 90°C (−49°F to 194°F)
  • UL 486A/486B listed and service-entrance rated for indoor use
  • Plugs marked with maximum wire size; re-entry capable for inspection

What this connector does

The Morris 97690 provides an insulated, set-screw connection for splicing and multi-tap terminations. It is configured for one conductor per port and offers dual side entry to accommodate routing where side access is used.

  • 10 individual ports to separate conductors and taps
  • Interior pre-filled with oxide inhibitor for copper and aluminum connections
  • Plugs marked with maximum wire size for identification

Typical applications

Provided product details indicate use with service-entrance and feeder conductors in indoor panels, gutters, troughs, and junction boxes where a service-entrance rated CU9AL connector is appropriate.

  • In-line splicing of service and feeder conductors
  • Multi-tap terminations in electrical panels and junction enclosures
  • Indoor installations requiring service-entrance rated components

Electrical ratings and conductor compatibility

The 97690 is rated to 600V and lists a conductor range of 3/0 through 6 AWG. It is CU9AL rated for use with copper or aluminum conductors as indicated by the product data and is listed to UL 486A/486B.

  • Voltage rating: 600V
  • Wire range: 3/0–6 AWG
  • CU9AL dual rating for copper and aluminum conductors
  • Listed to UL 486A/486B

Installation and serviceability

Product information specifies one wire per terminal and that the connector is re-entry capable for inspection and troubleshooting. Conductors should be prepared and tightened to the appropriate torque per installer practice or instructions supplied with the connector.

  • One wire per terminal—do not double conductors in a port
  • Re-entry capable for inspection and troubleshooting
  • Plugs marked to assist with wire-size verification

Materials and physical details

The connector body is 6061‑T6 aluminum with a black plastisol-dipped high-dielectric insulation. The unit is pre-filled with oxide inhibitor and is UV rated per the provided product description.

  • Body: 6061‑T6 aluminum
  • Insulation: black plastisol high-dielectric dip
  • Temperature rating: −45°C to 90°C (−49°F to 194°F)
  • Entry style: dual side entry; Ports: 10

Before You Order

Verify the 3/0–6 AWG wire range, CU9AL rating, 10-port count, and indoor service-entrance suitability for your project.

  • Product is service-entrance rated for indoor use only.
  • Use one conductor per port.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97690 Black Insulated Connector, Dual Side Entry, 3/0 AWG, 10-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97690; '97690
TypeBlack Insulated Connector, Dual Side Entry
Wire Range3/0–6 AWG; Copper / Aluminum (CU9AL)
Ports10
EntryDual Side
InsulationBlack plastisol
Voltage600V
Temperature Rating−45°C to 90°C (−49°F to 194°F)
CertificationsUL 486A/486B; Service Entrance Rated (indoor use only)
Material6061‑T6 Aluminum
