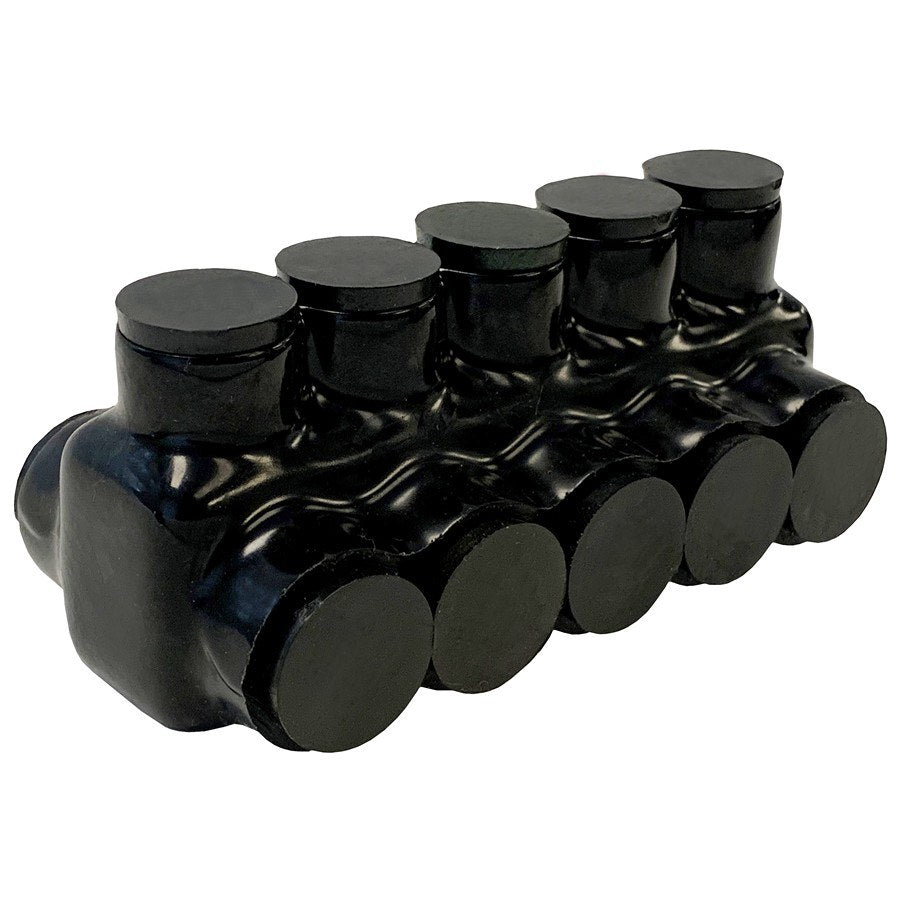

Morris 97685 Black Insulated Connector, Dual Side Entry, 3/0 AWG, 5-Port

(No Ratings)
SKU: 97685
Price: $57.01
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97685 is a 5-port, dual side entry insulated connector with a 3/0–6 AWG wire range. Its 6061‑T6 aluminum body is plastisol-dipped in black for high dielectric insulation and is pre-filled with oxide inhibitor for use with copper or aluminum conductors.

Designed for service-entrance and feeder splicing or multi-tap terminations in indoor panels, troughs, junction boxes and similar enclosures, the connector is CU9AL dual rated, UL 486A/486B listed, and rated 600V with a temperature range of -45°C to 90°C.

Key Features

  • CU9AL dual rated for copper and aluminum conductors
  • Accepts a 3/0–6 AWG wire range, five ports (one conductor per terminal)
  • 6061‑T6 aluminum body with black plastisol high‑dielectric insulation
  • Pre-filled with oxide inhibitor for aluminum and copper compatibility
  • Dual side entry for flexible conductor routing and easy re-entry for inspection
  • Plugs marked with maximum wire size for identification
  • UV rated; suitable for 90°C cable rating
  • UL 486A/486B listed and service-entrance rated for indoor use
  • Voltage rating: 600V; temperature rating: -45°C to 90°C

What this connector is for

Direct-answer: The Morris 97685 is a set-screw insulated connector intended for in-line splicing and multi-tap terminations of service-entrance and feeder conductors where a compact, insulated 5-port connection is required.

It accepts a single conductor per terminal and is intended to join or branch conductors in enclosed indoor electrical enclosures.

Typical applications

Direct-answer: Use this connector for splicing and multi-tap terminations in panels, gutters, troughs and junction boxes for indoor copper or aluminum runs.

The product is service-entrance rated, so it is suitable for common utility and building feeder connections where an insulated multi-port device is specified.

  • Panel and meter base terminations
  • Feeder splices and multi-tap branch points
  • Junction boxes, troughs and gutters (indoor use only)

Electrical ratings & conductor compatibility

Direct-answer: The 97685 is rated 600V and is CU9AL dual listed for use with copper and aluminum conductors.

The connector accepts conductors sized 3/0 through 6 AWG and is pre-filled with oxide inhibitor to protect aluminum terminations and support reliable copper or aluminum connections.

  • Voltage rating: 600V
  • Conductor range: 3/0–6 AWG
  • CU9AL — suitable for copper and/or aluminum conductors
  • Temperature rating: -45°C to 90°C (−49°F to 194°F)

Installation & serviceability

Direct-answer: Install by stripping each conductor to the marked length, inserting one wire per port, and tightening the set screws to the rated torque using the appropriate hex or slotted driver.

Dual side entry provides flexible routing, and the insulation allows easy re-entry for inspection and troubleshooting without removing the connector body.

  • One conductor per terminal; plugs are marked with max wire size for identification
  • Pre-filled oxide inhibitor reduces the need for separate anti-oxidant application on aluminum
  • Designed for re-entry to inspect connections

Construction and identification

Direct-answer: The connector uses a 6061‑T6 aluminum body with black plastisol-dipped high-dielectric insulation for electrical isolation and durability.

The unit is UV rated and marked for wire size to speed identification during installation and maintenance.

  • Body material: 6061‑T6 aluminum
  • Insulation: black plastisol high-dielectric dip
  • Ports: 5 (dual side entry)
  • Listings: UL 486A/486B; service-entrance rated; indoor use only

Before You Order

Confirm the model number and quantity required before ordering. This listing describes the Morris 97685 insulated connector (catalog 97685).

  • Verify conductor sizes and that a 5-port, dual side entry connector fits the intended enclosure and routing.
  • Confirm acceptance of CU9AL rated connectors in the installation and that indoor use is appropriate.
  • Follow installation torque and conductor preparation practices per project or local electrical code; product description lists conductor range and set-screw connection method.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97685 Black Insulated Connector, Dual Side Entry, 3/0 AWG, 5-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97685; '97685
TypeBlack Insulated Connector, Dual Side Entry
Wire Range3/0–6 AWG
Ports5
EntryDual Side
ConductorCopper / Aluminum (CU9AL)
InsulationBlack plastisol
Material6061‑T6 aluminum body
Rated Voltage600V
Temperature Rating-45°C to 90°C
CertificationsUL 486A/486B; Service Entrance Rated (Indoor Use Only)
