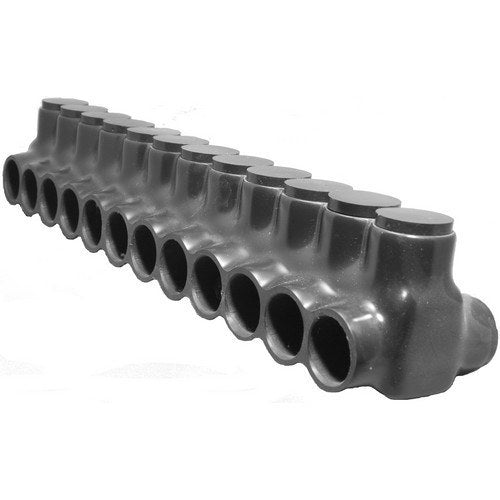

Morris 97672 Black Insulated Connector, Dual Side Entry, 600 MCM, 12-Port

(No Ratings)
SKU: 97672
Price: $351.94
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97672 is a black insulated, dual side-entry set-screw connector with 12 ports designed for in-line splicing and multi-tap terminations of copper or aluminum conductors.

It accepts a 600–250 wire range, features a 6061-T6 aluminum body pre-filled with oxide inhibitor, and is rated CU9AL for use on copper and/or aluminum circuits up to 600V (indoor service-entrance applications).

Key Features

  • 12-port dual side-entry design for in-line splices and multi-tap terminations
  • Accepts 600–250 wire range (one wire per terminal)
  • CU9AL dual-rated for copper and/or aluminum conductors
  • 6061-T6 aluminum conductor body pre-filled with oxide inhibitor
  • Black plastisol-dipped high-dielectric insulation — UV rated
  • Rated 600V and temperature range −45°C to 90°C (−49°F to 194°F)
  • UL 486A/486B listed and Service Entrance Rated for indoor use
  • Plugs marked with maximum wire size; easy re-entry for inspection and troubleshooting

Function and Typical Uses

This connector is designed for in-line splicing and multi-tap terminations of service-entrance and feeder conductors. Typical locations include panels, gutters, troughs, and junction boxes where indoor copper or aluminum runs require a secure set-screw connection.

  • Used for splicing and multi-tap terminations
  • Suitable for service-entrance and feeder conductors
  • Intended for indoor installations

Electrical Ratings and Conductor Compatibility

The Morris 97672 is rated for 600V and accepts conductors in the 600–250 wire range. It is CU9AL dual-rated for use with copper and/or aluminum conductors and is pre-filled with oxide inhibitor to support mixed-metal installations.

  • Voltage rating: 600V
  • Wire range: 600–250
  • Conductor compatibility: Copper and Aluminum (CU9AL)

Installation and Handling

Install by stripping each conductor to the marked length, inserting a single conductor per port, and tightening the set screws to the specified torque using the matching hex or slotted driver. The connector is designed for easy re-entry to allow inspection or troubleshooting without damaging the plug or insulation.

  • One wire per terminal — do not double up conductors in a port
  • Set screws require appropriate driver and torque (use manufacturer torque spec if available)
  • Plugs are marked with max wire size to guide stripping and insertion

Materials and Insulation

The conductive body is 6061-T6 aluminum. The external insulation is a black plastisol dip providing a high-dielectric barrier and UV rating. The conductor cavities are pre-filled with oxide inhibitor to reduce oxidation on copper or aluminum conductors.

  • Body material: 6061-T6 aluminum
  • Insulation: black plastisol-dipped, high-dielectric, UV rated
  • Pre-filled with oxide inhibitor for corrosion protection

Listings and Environmental Suitability

The connector is UL 486A/486B listed and Service Entrance Rated for indoor use. Temperature rating covers −45°C to 90°C (−49°F to 194°F). It is specified for indoor service-entrance and feeder installations; do not assume outdoor suitability unless additional verification is available.

  • Listings: UL 486A/486B
  • Temperature rating: −45°C to 90°C (−49°F to 194°F)
  • Intended for indoor use and service-entrance applications

Ports, Entry Style, and Configuration

This SKU provides 12 ports with dual side entry, allowing conductors to be routed from either side of the connector. The design accommodates one conductor per terminal and includes plugs marked for maximum wire size to aid identification.

  • Port count: 12
  • Entry: Dual side entry
  • Wire per terminal: one

Before You Order

Confirm the model number and quantity required before ordering. This product is specified for indoor service-entrance and feeder conductor use and accepts one conductor per terminal.

  • Verify conductor sizes (600–250) and that CU9AL compatibility meets your application
  • Confirm you will use one wire per port and have the correct driver and torque specification for set screws
  • For outdoor or wet-location use, consult product documentation or manufacturer — this SKU is listed for indoor use

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97672 Black Insulated Connector, Dual Side Entry, 600 MCM, 12-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97672
Product TypeBlack Insulated Connector, Dual Side Entry
Wire Range600–250
Ports12
EntryDual Side
ConductorCopper / Aluminum (CU9AL)
InsulationBlack Plastisol
Rated Voltage600V
Temperature Rating−45°C to 90°C (−49°F to 194°F)
Material6061-T6 Aluminum
CertificationsUL 486A/486B; Service Entrance Rated
