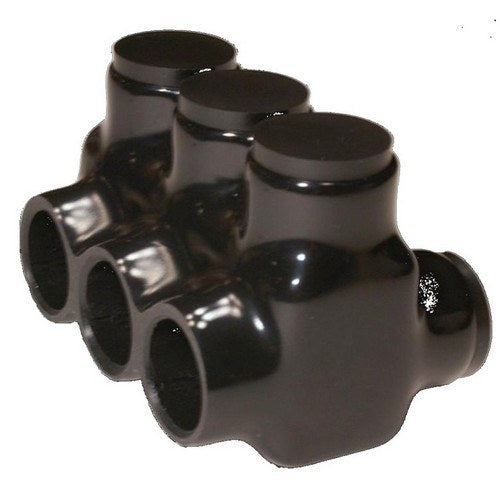

Morris 97663 Black Insulated Connector, Dual Side Entry, 600 MCM, 3-Port

(No Ratings)
SKU: 97663
Price: $100.10
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97663 is a black, plastisol‑insulated, dual side‑entry, 3‑port set‑screw connector for splicing and multi‑tap terminations. It accepts conductors in the 600–250 MCM range and is CU9AL dual rated for copper and aluminum.

Constructed with a 6061‑T6 aluminum body, pre‑filled with oxide inhibitor and marked plugs, the 97663 is rated 600V and listed to UL 486A/486B for indoor service‑entrance applications.

Key Features

  • CU9AL dual rated for copper and/or aluminum conductors
  • Accepts 600–250 MCM conductors (three ports)
  • 6061‑T6 aluminum body pre‑filled with oxide inhibitor
  • Black plastisol‑dipped high‑dielectric insulation with UV rating
  • Dual side‑entry design with plugs marked for max wire size
  • Rated 600V, temperature range −45°C to 90°C (−49°F to 194°F)
  • UL 486A/486B listed and service entrance rated for indoor use
  • One wire per terminal; easy re‑entry for inspection and troubleshooting

What this connector is for

The Morris 97663 is designed for in‑line splicing and multi‑tap terminations of service‑entrance and feeder conductors. Typical installations include panels, gutters, troughs and junction boxes where indoor copper or aluminum runs require a compact, re‑enterable set‑screw connector.

  • Three ports accommodate three conductors for splicing or tapping.
  • Dual side‑entry layout facilitates routing and access in confined spaces.
  • Pre‑filled interior supports both copper and aluminum conductors.

Electrical ratings and conductor compatibility

The 97663 is rated 600V and accepts conductor sizes in the 600–250 MCM range. It carries a CU9AL designation, allowing use with copper and/or aluminum conductors as marked.

  • Voltage rating: 600V
  • Conductor range: 600–250 MCM
  • CU9AL = dual rated for copper and aluminum

Installation and re‑entry

Installation requires stripping each conductor to the marked length, inserting one wire per port, and tightening the set screws to the specified torque using the appropriate hex or slotted driver. The connector is pre‑filled with oxide inhibitor to protect aluminum connections and is designed for easy re‑entry for inspection or troubleshooting.

  • One wire per terminal — do not double‑strand into a single port.
  • Plugs are marked with max wire size to aid identification.
  • Re‑enterable design allows removal of plugs for inspection.

Materials, insulation and environmental limits

The connector body is machined from 6061‑T6 aluminum. Insulation consists of a black plastisol dip providing high dielectric strength and UV resistance. Temperature rating covers −45°C to 90°C (−49°F to 194°F).

  • Body: 6061‑T6 aluminum
  • Insulation: black plastisol (high‑dielectric, UV rated)
  • Temperature rating: −45°C to 90°C (−49°F to 194°F)

Listings and application scope

The Morris 97663 is listed to UL 486A/486B and is service entrance rated for indoor use. Use this connector in accordance with applicable electrical codes and the equipment manufacturer instructions where service‑entrance or feeder splices are required.

  • UL listing: UL 486A/486B
  • Service entrance rated
  • Intended for indoor use

Before You Order

Confirm the model number and conductor sizes required before ordering. This product is listed for indoor service‑entrance use and is CU9AL rated for copper and aluminum; verify suitability with local code and the project’s electrical specifications.

  • Verify conductor sizes (600–250 MCM) and one‑wire‑per‑port requirement.
  • Confirm indoor service‑entrance application is acceptable for your installation.
  • Have the correct driver and torque values available for set‑screw tightening.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97663 Black Insulated Connector, Dual Side Entry, 600 MCM, 3-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97663; '97663
TypeBlack Insulated Connector, Dual Side Entry
Wire Range600–250 MCM
Ports3
EntryDual Side
ConductorCopper / Aluminum (CU9AL)
InsulationBlack plastisol
Voltage600V
Temperature Rating−45°C to 90°C (−49°F to 194°F)
CertificationsUL 486A/486B
Material6061‑T6 Aluminum
