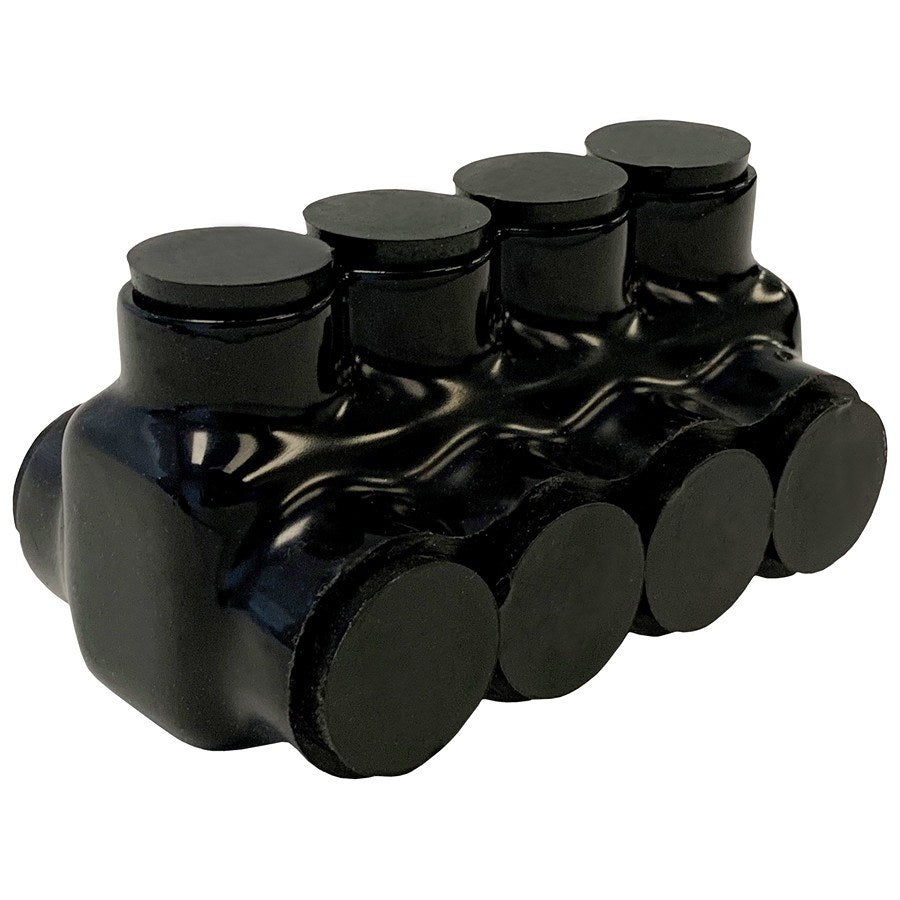

Morris 97654 Black Insulated Connector, Dual Side Entry, 350 MCM, 4-Port

(No Ratings)
SKU: 97654
Price: $67.95
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97654 is a black, plastisol‑insulated, dual‑side entry set‑screw connector sized for 350–6 conductors with four ports. It features a 6061‑T6 aluminum body pre‑filled with oxide inhibitor and is CU9AL rated for copper or aluminum conductors.

Intended for indoor service‑entrance and feeder splices and multi‑tap terminations, the connector is UL 486A/486B listed, service entrance rated, and specified for 600V systems with a temperature range of −45°C to 90°C.

Key Features

  • CU9AL dual rated for copper and aluminum conductors
  • Accepts wire range 350–6 (four ports)
  • 6061‑T6 aluminum body pre‑filled with oxide inhibitor
  • Black plastisol high‑dielectric insulation; UV rated
  • Dual side entry for access and re‑entry
  • UL 486A/486B listed and service entrance rated
  • Rated 600V; temperature range −45°C to 90°C
  • Plugs marked with maximum wire size; one wire per terminal

What this connector is used for

The Morris 97654 is intended for in‑line splicing and multi‑tap terminations of service‑entrance and feeder conductors. Typical installations include panels, gutters, troughs and junction boxes for indoor copper or aluminum runs where a set‑screw connector with inspection access is required.

  • Splicing and multi‑tap terminations for service‑entrance and feeder conductors
  • Suitable for indoor use in panels, junction boxes, gutters and troughs
  • One wire per terminal

Voltage, conductor compatibility and ratings

Use this connector on systems up to 600V with copper or aluminum conductors. The product carries a CU9AL dual rating for copper or aluminum conductors. It is UL 486A/486B listed and service entrance rated.

  • Voltage rating: 600V
  • Conductor compatibility: Copper and/or Aluminum (CU9AL)
  • Listing: UL 486A/486B; service entrance rated

Installation basics and inspection access

Each conductor is inserted into a dedicated port and secured with a set screw. The dual side entry design allows wire entry from either side and re‑entry for inspection or troubleshooting without removing adjacent terminations.

  • Strip conductors to the marked length on the connector plugs
  • Insert one wire per port and tighten set screws with the proper hex or slotted driver
  • Connector is pre‑filled with oxide inhibitor to support copper and aluminum installations

Materials, insulation and temperature limits

The body is machined from 6061‑T6 aluminum and the connector is dipped in black plastisol to provide high‑dielectric insulation. The unit is UV rated and specified for cable operating temperatures from −45°C to 90°C.

  • Body material: 6061‑T6 aluminum
  • Insulation: black plastisol (high dielectric), UV rated
  • Operating temperature: −45°C to 90°C

Before You Order

Confirm the model number, quantity and that the 350–6 wire range, four‑port configuration and indoor service entrance rating match your application.

  • Confirm conductor sizes and whether copper or aluminum will be used.
  • Ensure local code permits CU9AL set‑screw connectors for your installation.
  • Have the appropriate hex or slotted driver available for the set screws.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97654 Black Insulated Connector, Dual Side Entry, 350 MCM, 4-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97654; '97654
TypeBlack Insulated Connector, Dual Side Entry
Wire Range350–6
Ports4
EntryDual side
ConductorCopper / Aluminum (CU9AL)
InsulationBlack plastisol
Rated Voltage600V
Temperature Rating−45°C to 90°C
CertificationsUL 486A/486B; Service Entrance Rated
Material6061‑T6 Aluminum
Package ContentsOne Morris 97654 insulated connector
