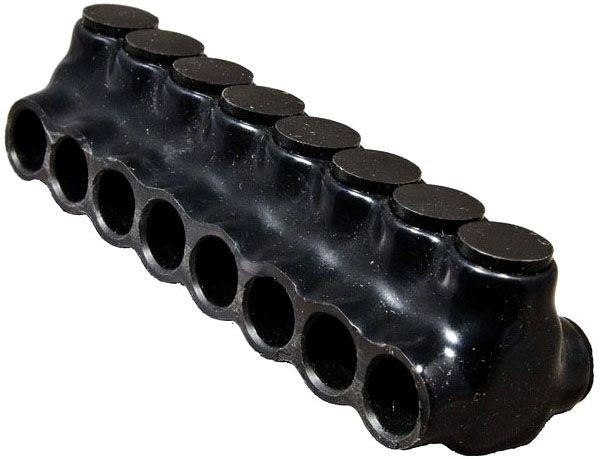

Morris 97648 Black Insulated Connector, Dual Side Entry, 250 MCM, 8-Port

(No Ratings)
SKU: 97648
Price: $107.93
Free shipping on orders over $1,500

Description

Product Overview

The Morris 97648 is an 8-port, dual side entry insulated connector with a 250–6 wire range and CU9AL rating for copper or aluminum conductors.

It features a 6061‑T6 aluminum body with black plastisol high-dielectric insulation, is pre-filled with oxide inhibitor, and is UL 486A/486B listed for indoor service-entrance use up to 600V.

Key Features

  • Wire range: 250–6 AWG; 8 ports, one conductor per terminal
  • CU9AL dual rated for copper and aluminum conductors
  • 6061‑T6 aluminum body pre-filled with oxide inhibitor
  • Black plastisol-dipped high-dielectric insulation with UV rating
  • Rated 600V; temperature range −45°C to 90°C (−49°F to 194°F)
  • UL 486A/486B listed and service-entrance rated; indoor use only
  • Plugs marked with maximum wire size; easy re-entry for inspection
  • Dual side entry design for in-line splicing and multi-tap terminations

What this connector is for

Direct-answer: The Morris 97648 is designed for in-line splicing and multi-tap terminations of service-entrance and feeder conductors in indoor panels, gutters, troughs, and junction boxes.

It accepts a single conductor per terminal and supports common field tasks where a compact, re-enterable, dual-side entry set-screw connector is required.

  • Suitable for service‑entrance and feeder splices
  • Used in panels, junction boxes, gutters, and troughs
  • One wire per terminal—8 ports total

Electrical ratings and conductor compatibility

Direct-answer: The connector is rated to 600V and is CU9AL dual rated for use with copper or aluminum conductors within the 250–6 AWG range.

Temperature rating is −45°C to 90°C (−49°F to 194°F). These ratings define the electrical and thermal environment in which the 97648 is specified for use.

  • Voltage rating: 600V
  • Wire range: 250–6 AWG
  • Conductor compatibility: Copper or Aluminum (CU9AL)
  • Temperature range: −45°C to 90°C (−49°F to 194°F)

Installation and serviceability

Direct-answer: Install by stripping each conductor to the marked length, inserting one wire per port, and tightening the set screws to the recommended torque using the matching hex or slotted driver.

The connector is pre-filled with oxide inhibitor to support CU/AL connections and features easy re-entry—plugs are marked with maximum wire size for identification and troubleshooting access.

  • Strip conductors to the marked length before insertion
  • Tighten set screws with appropriate hex or slotted driver
  • Pre-filled with oxide inhibitor for CU/AL use
  • Plugs marked with maximum wire size; designed for re-entry and inspection

Materials and insulation

Direct-answer: The body is machined from 6061‑T6 aluminum and the connector is dipped in black plastisol to provide high-dielectric insulation and UV resistance.

The internal cavity is pre-filled with an oxide inhibitor to reduce corrosion risk when used with copper or aluminum conductors.

  • Body material: 6061‑T6 aluminum
  • Insulation: Black plastisol high-dielectric dip; UV rated
  • Filled with oxide inhibitor for dual-metal use

Technical specifications

Direct-answer: The following specifications summarize the certified, model-specific attributes of the Morris 97648 connector.

  • Model: Morris 97648
  • Type: Black insulated connector, dual side entry
  • Ports: 8 (one conductor per terminal)
  • Wire range: 250–6 AWG
  • Conductor rating: CU9AL (Copper / Aluminum)
  • Voltage: 600V
  • Temperature: −45°C to 90°C (−49°F to 194°F)
  • Material: 6061‑T6 aluminum
  • Listings: UL 486A/486B; Service-entrance rated; Indoor use only

Before You Order

Confirm the model number and quantity required before ordering. This product is specified for indoor service-entrance and feeder applications—verify suitability with your project requirements and local codes.

  • Verify the conductor sizes (250–6 AWG) and that CU9AL dual rating meets your conductor type
  • Confirm indoor use and service-entrance application suitability for your installation
  • Have the appropriate driver and torque specifications available for set-screw tightening

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97648 Black Insulated Connector, Dual Side Entry, 250 MCM, 8-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU97648; '97648
TypeBlack Insulated Connector, Dual Side Entry
Wire Range250–6 AWG
Ports8
EntryDual Side
ConductorCopper / Aluminum (CU9AL)
InsulationBlack Plastisol
Voltage600V
Temperature Rating−45°C to 90°C (−49°F to 194°F)
CertificationsUL 486A/486B
Material6061‑T6 Aluminum
