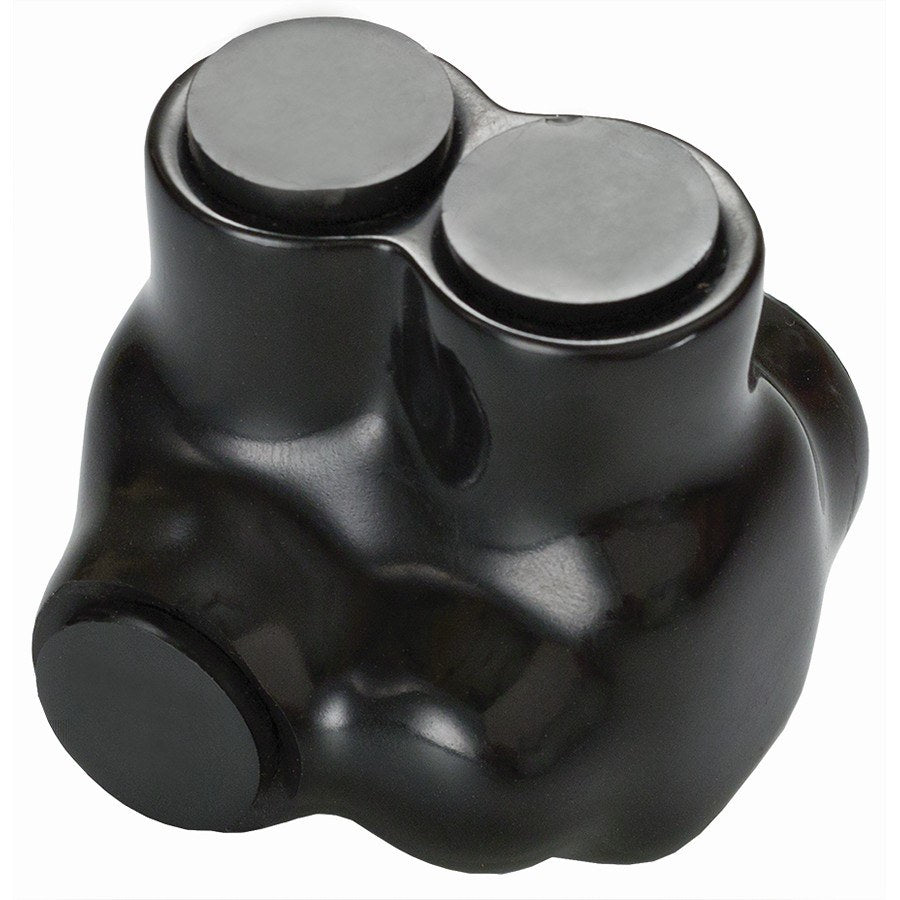

Morris 97052 Black Insulated 2-Conductor Offset Connector, 2 AWG
Description
Product Overview
The Morris 97052 is a black insulated, two-conductor offset connector for copper or aluminum conductors in the 2–14 AWG range. It is rated 600V and is service entrance rated for indoor use.
Its 6061-T6 aluminum body is pre-filled with oxide inhibitor and covered with black plastisol insulation. The connector is designed for one wire per terminal.
Key Features
- Accepts two conductors in the 2–14 AWG range, one wire per terminal
- CU9AL dual rated for copper and aluminum conductors
- 600V rating and UL 486A/486B listing
- 6061-T6 aluminum body with pre-filled oxide inhibitor
- Black plastisol-dipped high-dielectric insulation
Conductor Range and Compatibility
The Morris 97052 accepts two copper or aluminum conductors in the 2–14 AWG range. It is a one-wire-per-terminal connector with an offset entry.
Connector Construction and Insulation
The connector body is made from 6061-T6 aluminum and is pre-filled with oxide inhibitor. Black plastisol-dipped insulation provides high-dielectric insulation, and the plugs are marked with the maximum wire size for identification.
Ratings and Intended Use
The 97052 is rated 600V and for use with 90°C cables, with a listed temperature range of -45°C to 90°C. It is UL 486A/486B listed and service entrance rated for indoor use.
Stated applications include in-line splicing and multi-tap terminations of service-entrance and feeder conductors in panels, gutters, troughs, and junction boxes.
Installation Details
Strip each conductor to the marked length, insert one wire per port, and tighten the set screws to the rated torque using a matching hex or slotted driver.
Before You Order
Confirm that the 2–14 AWG wire range and two-conductor configuration match your application.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 97052 Black Insulated 2-Conductor Offset Connector, 2 AWG. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 97052 |
| Product Type | Black insulated 2-conductor offset connector |
| Wire Range | 2–14 AWG |
| Conductor count | 2 |
| Conductor | Copper / aluminum (CU9AL) |
| Entry | Offset |
| Housing Material | 6061-T6 aluminum |
| Insulation | Black plastisol |
| Rated Voltage | 600V |
| Temperature Range | -45°C to 90°C |
| Certifications | UL 486A/486B |
| Use rating | Service entrance rated; indoor use only |
