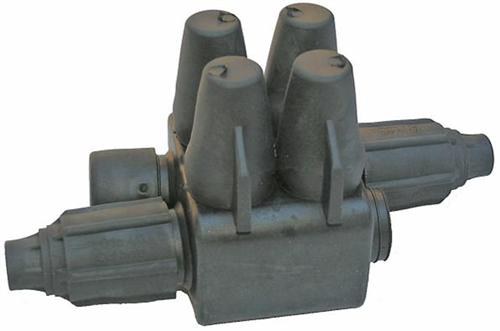

Morris 96142 Submersible Insulation Piercing Splice, 1/0 AWG - 350 MCM

(No Ratings)
SKU: 96142
Price: $98.42
Free shipping on orders over $1,500

Description

Product Overview

The Morris 96142 is a submersible, waterproof insulation-piercing in-line splice for jacketed copper or aluminum conductors from 1/0 AWG to 350 MCM.

Its insulation-piercing design joins jacketed cable without cutting or stripping. A rubber over-molded body and double shear-head bolt are part of the connector design.

Key Features

  • For 1/0 AWG–350 MCM copper or aluminum conductors
  • In-line splice for jacketed cable without cutting or stripping
  • Submersible, waterproof construction with a rubber over-molded body
  • Double shear-head bolt breaks off at 185 in-lb torque

Conductor Range and Splice Design

The Morris 96142 is an in-line splice for jacketed copper or aluminum conductors sized from 1/0 AWG to 350 MCM. Its insulation-piercing design makes the connection without cutting or stripping the cable.

Submersible Use and Applications

The 96142 is described as fully submersible and waterproof. Its stated applications include direct-buried and submerged in-line splices in underground residential distribution, street lighting, and similar wet-location work.

Installation and Shear-Head Bolt

Insert each jacketed conductor fully into the connector, then tighten the double shear-head bolt using a 1/2-inch, 6-point socket. The bolt head breaks off at 185 in-lb.

Before You Order

Confirm that the conductor material and size are within the 96142's stated range and that the in-line splice configuration suits the job.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 96142 Submersible Insulation Piercing Splice, 1/0 AWG - 350 MCM. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number96142
Product TypeSubmersible insulation-piercing splice
Splice typeIn-line
Wire Range1/0 AWG–350 MCM
Conductor CompatibilityCopper or aluminum
RatingSubmersible / waterproof
Bolt break-off torque185 in-lb
Socket size1/2 inch, 6-point
