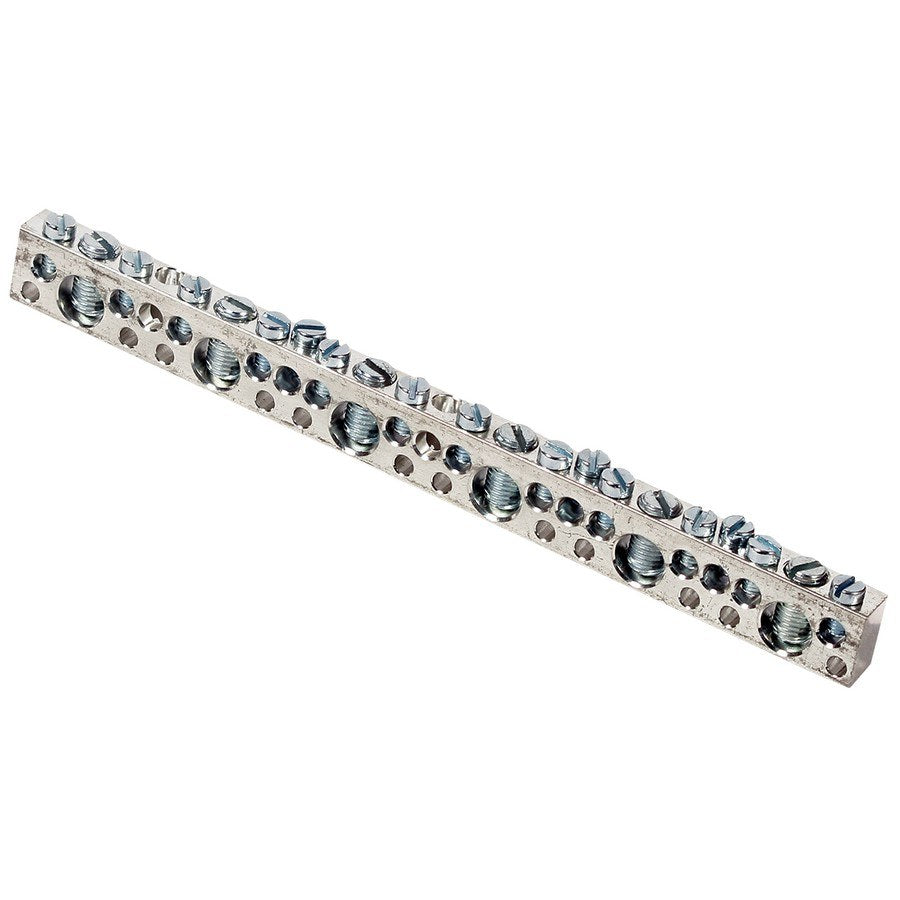

Morris 95195 Aluminum Multi-Combination Neutral/Ground Bar, 2 Feed + 5 Tap

(No Ratings)
SKU: 95195
Price: $18.85
Free shipping on orders over $1,500

Description

Product Overview

The Morris 95195 is a multi-combination aluminum neutral/ground bar for feeding and tapping grounded (neutral) or grounding conductors in panelboards and enclosures.

Its two feed ports and five tap ports provide separate connection positions for conductors within the specified ranges. The bar is dual rated for copper or aluminum conductors.

Key Features

  • Two feed holes and five tap holes
  • Dual rated for copper or aluminum conductors
  • 6060-T6 tin-plated aluminum construction
  • 600V, 90°C rating and UL486A listing

Use in Panelboards and Enclosures

The Morris 95195 provides connection points for grounded (neutral) or grounding conductors in panelboards and enclosures. Its multi-combination layout separates feed connections from tap connections.

Feed and Tap Connection Layout

The bar has two feed holes for larger conductors and five tap holes for branch conductors. Match each conductor to the applicable hole range shown in the specifications.

Material and Electrical Ratings

The bar is made from tin-plated 6060-T6 aluminum and is dual rated for copper or aluminum conductors. It is UL486A listed and rated for use at 600V and 90°C.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 95195 Aluminum Multi-Combination Neutral/Ground Bar, 2 Feed + 5 Tap. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number95195
TypeAluminum multi-combination neutral/ground bar
Material6060-T6 tin-plated aluminum
Feed holes2; 1/0–14 AWG
Tap holes5; 6–14 AWG
Length2.29 in.
Conductor CompatibilityCopper or aluminum; dual rated
Rated Voltage600V
Temperature Rating90°C
CertificationsUL486A
