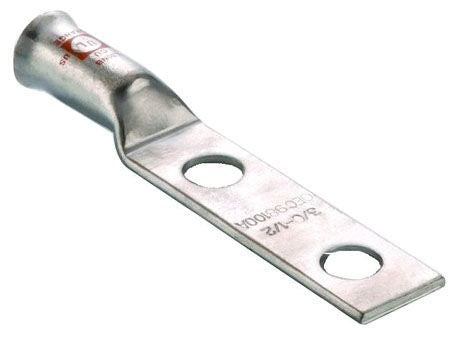

Morris 94737 Copper Flex-Cable Long-Barrel Compression Lug, #300 AWG, 1/2" Stud, 2-Hole
Description
Product Overview
The Morris 94737 is a long‑barrel, copper compression lug engineered to terminate #300 AWG fine‑strand flexible conductors to a 1/2" stud. It features a flared entry for easy cable insertion, a two‑hole tongue for secure bolting, and electro‑tin plating for corrosion resistance.
Designed for use with fine‑strand flexible cable types (including Class G, H, I, K battery, M welding, and DLO), the lug is UL 486AB listed for applications through 35 kV and includes visible die/color coding and crimp marks for proper installation.
Key Features
- Seamless high‑conductivity copper body with electro‑tin plating
- Long barrel with flared/belled entry for easy insertion of fine‑strand cable
- Color‑coded (White) die index and crimp marks printed on the barrel
- Dual mounting holes (2‑hole tongue) for improved contact integrity
- Inspection window and ability to accommodate multiple crimps
- UL 486AB listed for use through 35 kV
What this lug does
The Morris 94737 provides a durable electrical and mechanical termination for #300 AWG fine‑strand flexible conductors. Its long barrel and dual mounting holes allow secure multiple crimps and a bolted connection to equipment or bus bars using a 1/2" stud.
- Terminates #300 AWG fine‑strand cable
- Connects to a 1/2" stud via a 2‑hole tongue
- Designed for repeated mechanical integrity where vibration or heavy current may be present
Intended applications
This lug is intended for terminating flexible cable types commonly used in welding leads, battery cables, DLO (direct‑buried/overhead flexible) conductors, and other fine‑strand applications where a heavy‑duty bolted connection is required.
- Welding cable (Class M)
- Battery cable (Class K)
- DLO and other fine‑strand flexible conductors (Classes G, H, I)
- Terminations to panels, bus bars, equipment, and studs requiring a 1/2" bolt
Installation and crimping
Install by stripping the conductor to the barrel depth, inserting the conductor fully through the flared (belled) entry, and crimping using the White‑coded die. The long barrel accommodates multiple crimps and includes printed crimp marks and an inspection window to help verify proper insertion and crimp quality.
- Strip conductor to barrel depth before insertion
- Use the White die (color‑coded on the barrel) for crimping
- Perform multiple crimps as required for mechanical strength; verify via inspection window
Material, finish, and electrical rating
The lug is constructed from seamless high‑conductivity copper and finished with electro‑tin plating to resist corrosion. It is UL 486AB listed for use through 35 kV, indicating suitability for specified voltage ranges within that listing.
- Material: seamless copper
- Finish: electro‑tin plating
- Listing: UL 486AB through 35 kV
Before You Order
Confirm the model number and conductor/stud sizes required before ordering. This listing describes a single SKU (Morris 94737) intended for #300 AWG conductors and a 1/2" stud.
- Verify conductor class (fine‑strand types G, H, I, K, M, DLO) is compatible with crimp termination
- Confirm any required crimping die set matches the White die color code printed on the barrel
- Check that a 2‑hole lug with a 1/2" stud hole meets equipment mounting requirements
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 94737 Copper Flex-Cable Long-Barrel Compression Lug, #300 AWG, 1/2" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 94737 |
| Type | Copper Flex‑Cable Long‑Barrel Compression Lug |
| Wire Size | #300 AWG |
| Stud Size | 1/2" |
| Mounting Type | 2‑Hole tongue |
| Barrel | Long barrel with flared/belled entry |
| Die Color Code | White (printed on barrel) |
| Material / Finish | Seamless copper, electro‑tin plated |
| Rating | UL 486AB through 35 kV |
