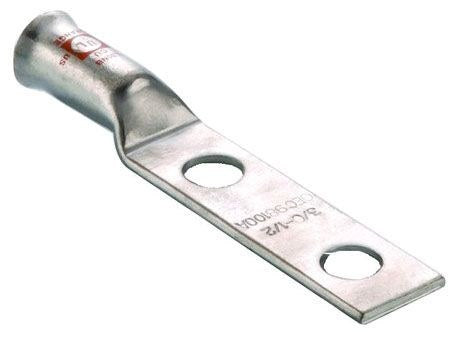

Morris 94735 Copper Flex-Cable Long-Barrel Compression Lug, #250 AWG, 3/8" Stud, 2-Hole

Product Overview

The Morris 94735 is a long-barrel compression lug for terminating #250 AWG fine-strand flexible conductors to a 3/8" stud using a 2-hole mounting tongue.

Made from seamless high-conductivity copper with electro-tin plating, the lug includes a flared (belled) entry to aid insertion of flexible cable, a yellow die index printed on the barrel, and an inspection window.

Key Features

• Seamless copper construction with electro-tin plating
• Long barrel with flared/belled entry for insertion of fine-strand flexible conductors
• Yellow die index and crimp marks printed on the barrel
• 2-hole mounting tongue sized for a 3/8" stud
• UL 486AB listed (through 35 kV)
• Inspection window; barrel length suitable for multiple crimps

Function and intended use

The 94735 compression lug terminates #250 AWG fine-strand flexible cable to equipment or bus connections using a 3/8" bolt. The 2-hole tongue provides a bolted mounting interface for mechanical and electrical connection.

• For terminating #250 AWG flexible conductors
• 2-hole tongue accommodates a 3/8" stud
• Long barrel provides space for crimped termination

Materials and finish

Body is seamless copper with electro-tin plating. The barrel has a printed yellow die index for crimp identification and includes an inspection window.

• Material: seamless copper
• Finish: electro-tin plating
• Die index color: Yellow (printed on barrel)

Installation and crimping

Strip the conductor to the barrel depth, insert fully through the flared entry so strands are visible at the inspection window, and crimp using the matching die indicated on the barrel.

• Strip conductor to barrel depth before insertion
• Insert conductor fully through flared/belled entry
• Crimp with the die that matches the printed (Yellow) index

Ratings and certification

The lug is listed to UL 486AB with a reference to use through 35 kV as part of that listing.

• Listing: UL 486AB
• Voltage reference: through 35 kV (per UL 486AB listing)

Mounting and mechanical interface

The lug has a long barrel and a 2-hole tongue sized for a 3/8" stud to provide a bolted connection to bus bars or equipment terminals.

• Conductor size: #250 AWG
• Stud size: 3/8"
• Mounting: 2-hole tongue
• Barrel style: Long barrel with flared entry and inspection window

Before You Order

Confirm the conductor size (#250 AWG) and stud size (3/8") match your application.

• Verify you have the appropriate crimping die and tooling that corresponds to the printed (Yellow) die index
