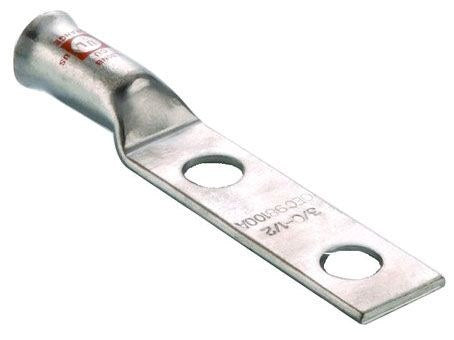

Morris 94725 Copper Flex-Cable Long-Barrel Compression Lug, 1/0 AWG, 1/2" Stud, 2-Hole

(No Ratings)
SKU: 94725
Price: $18.41
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94725 is a long-barrel copper compression lug for terminating 1/0 AWG fine-strand flexible cable. Its tongue has two mounting holes for a 1/2-inch stud.

A flared entry, inspection window, and pink color-coded die index are included in the lug’s design. The lug is made from seamless copper with electro-tin plating.

Key Features

  • For 1/0 AWG fine-strand flexible cable, including Class G, H, I, K, M, and DLO
  • Long barrel with flared entry and inspection window
  • Two-hole mounting for a 1/2-inch stud
  • Seamless copper with electro-tin plating
  • Pink color-coded die index and printed crimp marks
  • UL 486AB Listed through 35kV

Flexible Cable Compatibility

The Morris 94725 is sized for 1/0 AWG fine-strand flexible cable. Its flared, or belled, barrel entry is specified for Class G, H, I, K, M, and DLO cable.

  • Class K is identified for battery cable.
  • Class M is identified for welding cable.

Mounting and Crimp Configuration

This lug has a two-hole tongue for mounting on a 1/2-inch stud. The long barrel accommodates multiple crimps, and the barrel includes an inspection window, a pink die index, and printed crimp marks.

The listed installation procedure is to strip the conductor to barrel depth, insert it fully through the flared entry, and crimp with the pink-coded die. The tongue is then bolted to the 1/2-inch stud.

Copper Construction and Listing

The 94725 is made from seamless, high-conductivity copper with electro-tin plating. It is UL 486AB Listed through 35kV.

Before You Order

Confirm that the conductor is 1/0 AWG, the cable class is supported, and the mounting requires a 1/2-inch stud with a two-hole lug.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94725 Copper Flex-Cable Long-Barrel Compression Lug, 1/0 AWG, 1/2" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94725
Product TypeCopper flex-cable long-barrel compression lug
Wire Size1/0 AWG
Stud Size1/2 inch
Mounting Type2-hole
BarrelLong
Die Color CodePink
Material / FinishSeamless copper, electro-tin plated
CertificationsUL 486AB Listed through 35kV
