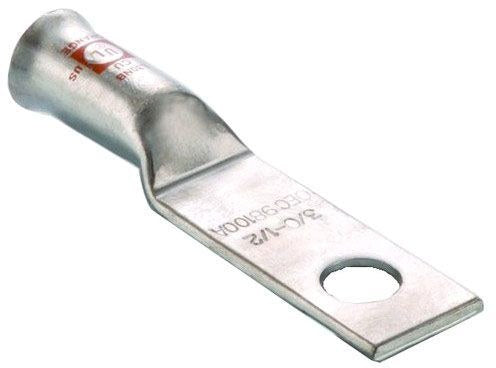

Morris 94680 Copper Flex-Cable Long-Barrel Compression Lug, #400 AWG, 1/2" Stud, 1-Hole
Description
Product Overview
The Morris 94680 is a long-barrel compression lug designed to terminate #400 AWG fine‑strand flexible conductors to a 1/2" stud using a single mounting hole. It is made from high‑conductivity seamless copper with electro‑tin plating and includes a flared/belled entry and inspection window for reliable insertion and crimping.
This lug is die‑indexed (Blue) for the appropriate crimp die, accepts multiple crimps in its long barrel, and is UL 486AB Listed for applications through 35 kV.
Key Features
- For #400 AWG fine‑strand flexible (Class G, H, I, K, M, and DLO) conductors
- High‑conductivity seamless copper construction with electro‑tin plating
- Long barrel accommodates multiple crimps and has an inspection window
- Flared/belled entry for easier insertion of fine‑strand cable
- Color‑coded (Blue) die index and crimp marks printed on the barrel
- 1‑hole tongue for 1/2" stud mounting
- UL 486AB Listed for use through 35 kV
Function and intended use
The Morris 94680 is intended to terminate #400 AWG fine‑strand flexible conductors to equipment, bus bars, or panels using a 1/2" stud and a single mounting hole. Typical conductor types include battery and welding flex, DLO, and other fine‑strand classes specified (Class G, H, I, K, M).
- Terminates #400 AWG conductors
- Mounts to a 1/2" stud using a 1‑hole tongue
- Used where a long‑barrel compression lug is required to accommodate multiple crimps
Materials and finish
Construction is seamless high‑conductivity copper plated with electro‑tin to resist corrosion and ensure good electrical contact. The barrel is printed with a blue die color code and crimp marks to match the appropriate crimping die.
- Seamless copper body
- Electro‑tin plating for corrosion resistance
- Blue color‑coded die index printed on barrel
Installation and crimping guidance
Prepare the conductor by stripping to the barrel depth, insert the fine‑strand conductor fully through the flared/belled entry and into the barrel, then crimp using the Blue‑coded die. The long barrel accepts multiple crimps and includes an inspection window to verify full insertion before crimping.
- Strip conductor to barrel depth before insertion
- Use the Blue die (color‑coded) for crimping this lug
- Multiple crimps supported in the long barrel; use inspection window to confirm conductor position
Electrical rating and approvals
This lug is UL 486AB Listed for applications through 35 kV. Use within manufacturer and code requirements for voltage, current, and application.
- UL 486AB Listed through 35 kV
Mounting and mechanical details
The Morris 94680 features a single‑hole tongue sized for a 1/2" stud and a long barrel to accommodate the conductor and crimps. The entry is flared/belled to help insert fine‑strand cable without splaying.
- Stud size: 1/2"
- Mounting: 1‑hole tongue
- Barrel style: Long barrel with flared/belled entry and inspection window
Before You Order
Confirm the model number and conductor size to ensure compatibility with your cable and hardware before ordering.
- Verify the conductor is #400 AWG fine‑strand and suitable for a compression lug termination.
- Confirm the mating stud or bolt is 1/2" diameter.
- Select the correct Blue‑coded crimp die for reliable compression connections.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 94680 Copper Flex-Cable Long-Barrel Compression Lug, #400 AWG, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 94680; '94680 |
| Type | Copper Flex‑Cable Long‑Barrel Compression Lug |
| Wire Size | #400 AWG |
| Stud Size | 1/2" |
| Mounting Type | 1‑Hole |
| Barrel | Long Barrel |
| Die Color Code | Blue |
| Material | Seamless Copper, Tin‑Plated |
| Rating | UL 486AB through 35 kV |
