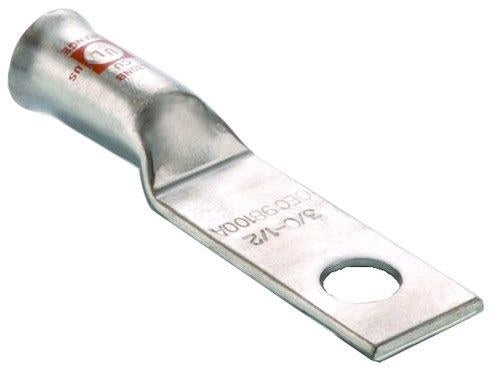

Morris 94679 Copper Flex-Cable Long-Barrel Compression Lug, #350 AWG, 5/8" Stud, 1-Hole

(No Ratings)
SKU: 94679
Price: $16.42
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94679 is a one-hole, long-barrel copper compression lug for terminating #350 AWG fine-strand flexible cable to a 5/8-inch stud.

It has a flared cable entry, an inspection window, and a red color-coded die index printed on the barrel. The lug is UL 486AB Listed for applications through 35kV.

Key Features

  • Designed for #350 AWG fine-strand flexible cable, including Class G, H, I, K, M and DLO.
  • Seamless, high-conductivity copper with electro-tin plating.
  • Long barrel accommodates multiple crimps; barrel includes printed crimp marks and an inspection window.
  • Single mounting hole for a 5/8-inch stud.

Cable and Stud Fit

Morris 94679 is sized for a #350 AWG conductor and has a single mounting hole for a 5/8-inch stud. Its stated cable types are fine-strand flexible cable Classes G, H, I, K, M and DLO.

Flexible Cable Entry and Crimp Features

The flared, or belled, entry helps guide fine-strand flexible cable into the barrel. The long barrel accommodates multiple crimps, and printed crimp marks and a red die index identify the barrel's crimping references.

  • An inspection window is included.
  • The die index color is red.

Material and Listing

The lug is made from seamless, high-conductivity copper with electro-tin plating. Morris 94679 is UL 486AB Listed for applications through 35kV.

Applications and Termination

This lug is described for terminating #350 AWG flexible cable, including welding, DLO and battery cable, to bus, panels and equipment with a 5/8-inch bolt. The stated installation sequence is to strip the conductor to barrel depth, insert it fully through the flared entry, crimp with the red-coded die, and bolt the tongue to the 5/8-inch stud.

Before You Order

Confirm that the conductor is #350 AWG and the mounting stud is 5/8 inch before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94679 Copper Flex-Cable Long-Barrel Compression Lug, #350 AWG, 5/8" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94679
Product TypeCopper flex-cable long-barrel compression lug
Wire Size#350 AWG
Stud Size5/8 inch
Mounting Type1-hole
BarrelLong
Die index colorRed
MaterialSeamless copper
PlatingElectro-tin
Cable typesFine-strand flexible cable Classes G, H, I, K, M and DLO
CertificationsUL 486AB Listed through 35kV
