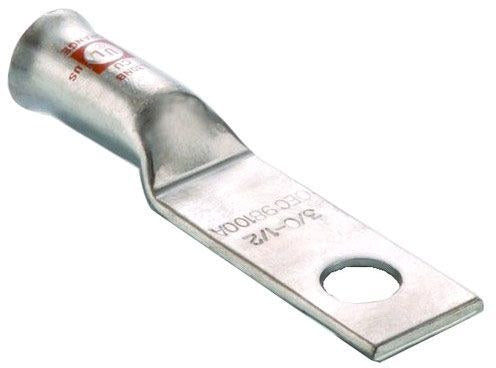

Morris 94678 Copper Flex-Cable Long-Barrel Compression Lug, #350 AWG, 1/2" Stud, 1-Hole

(No Ratings)
SKU: 94678
Price: $16.42
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94678 is a long-barrel compression lug that terminates #350 AWG fine‑strand flexible conductors to a 1/2" stud using a single mounting hole. It is made from high-conductivity seamless copper with electro-tin plating and features a flared entry to aid conductor insertion.

The lug includes a color-coded (Red) die index, printed crimp marks, an inspection window, and is UL 486AB listed through 35kV.

Key Features

  • Fits #350 AWG fine-strand flexible conductors
  • 1/2" stud size with 1-hole mounting tongue
  • High-conductivity seamless copper construction
  • Electro-tin (tin) plating
  • Flared/belled barrel entry for easier insertion of fine-strand cable
  • Long barrel to accommodate multiple crimps and inspection window
  • Color-coded (Red) die index and printed crimp marks
  • UL 486AB listed through 35kV

What this lug does

The Morris 94678 terminates #350 AWG fine-strand flexible cable to equipment or bus bars that accept a 1/2" stud using a single-hole tongue.

The flared barrel entry and printed crimp marks assist with conductor insertion and consistent placement prior to crimping.

  • Intended conductor: #350 AWG fine‑strand flexible cable
  • Mounting: 1-hole tongue sized for a 1/2" stud
  • Common terminations: bus, panels, equipment (where a 1/2" stud mounting is used)

Installation and crimping

Strip the conductor to the barrel depth, insert the conductor fully through the flared entry, and crimp using the Red-coded die specified for this lug.

The long barrel provides room for multiple crimps and includes an inspection window to verify insertion before crimping.

  • Strip conductor to match barrel depth
  • Use the Red die as indicated on the barrel for crimping
  • Verify crimp tool and die compatibility with this lug before use

Materials, plating, and electrical rating

The lug is made from high‑conductivity seamless copper with electro-tin plating.

The product is listed to UL 486AB through 35kV.

  • Material: Seamless copper
  • Plating: Electro-tin (tin-plated)
  • Listing: UL 486AB through 35kV

Mechanical and dimensional fit

The 94678 features a long barrel with a flared (belled) entry, a color-coded Red die index, printed crimp marks, an inspection window, and a single mounting hole sized for a 1/2" stud.

Confirm that the #350 AWG conductor and the 1/2" stud size match your equipment before selecting this lug.

  • Barrel: Long-barrel with flared entry and inspection window
  • Die color code: Red (printed on barrel)
  • Mounting: Single hole for 1/2" stud

Before You Order

Confirm the model number and that the conductor size (#350 AWG) and a 1/2" stud single-hole lug match your application.

  • Verify your crimp tool supports the Red die for this lug
  • Measure strip length to match barrel depth prior to installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94678 Copper Flex-Cable Long-Barrel Compression Lug, #350 AWG, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU94678; '94678
TypeCopper Flex-Cable Long-Barrel Compression Lug
Wire Size#350 AWG
Stud Size1/2"
Mounting Type1-Hole
BarrelLong Barrel with flared entry
Die Color CodeRed
MaterialSeamless Copper, Electro-Tin Plated
RatingUL 486AB through 35kV
Price16.42
