Morris 94644 Copper Flex-Cable Short-Barrel Compression Lug, #500 AWG, 5/8" Stud, 1-Hole

(No Ratings)
SKU: 94644
Price: $16.76
Free shipping on orders over $1,500

Description

Product Overview

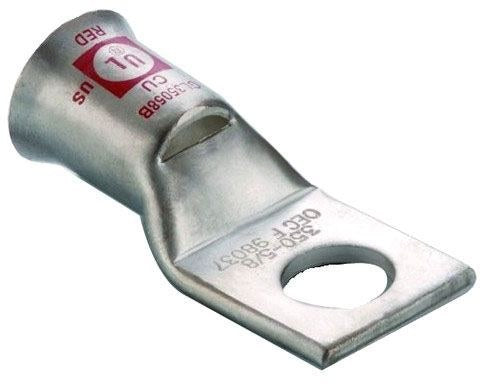

The Morris 94644 is a short-barrel copper compression lug for terminating a #500 AWG fine-strand flexible cable conductor to a 5/8-inch stud. Its tongue has one mounting hole.

The lug is made from seamless, high-conductivity copper with electro-tin plating. It has a flared entry, an inspection window, and a brown die index with crimp marks printed on the barrel.

Key Features

  • #500 AWG conductor size and 5/8-inch stud size
  • Single-hole mounting and short-barrel design
  • Flared entry for fine-strand flexible cable
  • Seamless copper construction with electro-tin plating
  • Brown die index and crimp marks printed on the barrel
  • UL 486AB Listed for applications through 35kV

Conductor and Stud Compatibility

The Morris 94644 is sized for a #500 AWG conductor and a 5/8-inch stud. Its one-hole tongue provides the stated mounting configuration.

  • Conductor: #500 AWG
  • Stud: 5/8 inch
  • Mounting: 1-hole
  • Barrel: short

Flexible Cable Applications

The flared, belled entry is designed to ease insertion of fine-strand flexible cable. The specified cable classes are G, H, I, K, M, and DLO; the catalog identifies K with battery cable and M with welding cable.

The lug is described for terminating flexible cable to bus, panels, and equipment using a 5/8-inch bolt.

Copper Construction and Crimp Identification

The lug is made from seamless, high-conductivity copper with electro-tin plating. Its barrel includes an inspection window and printed die index and crimp marks. The die index is brown.

  • Material: seamless copper
  • Plating: electro-tin
  • Die index: brown

Installation Configuration

The stated installation method is to strip the conductor to the barrel depth, insert it fully through the flared entry, and crimp using the brown-coded die. The lug tongue is then bolted to a 5/8-inch stud.

Before You Order

Confirm that the conductor is #500 AWG, the stud is 5/8 inch, and the required mounting is one-hole before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94644 Copper Flex-Cable Short-Barrel Compression Lug, #500 AWG, 5/8" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94644
Product TypeCopper flex-cable short-barrel compression lug
Wire Size#500 AWG
Stud Size5/8 inch
Mounting Type1-hole
BarrelShort
Die index colorBrown
Material and platingSeamless copper, electro-tin plated
Cable classesG, H, I, K, M, and DLO
CertificationsUL 486AB Listed for applications through 35kV
