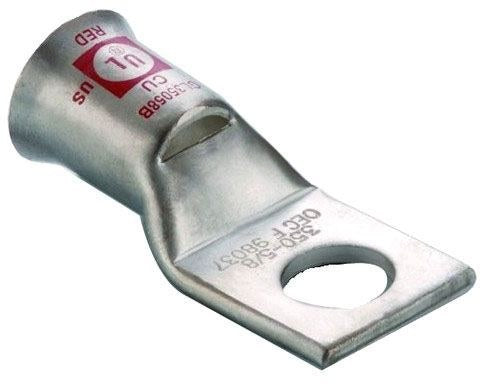

Morris 94634 Copper Flex-Cable Short-Barrel Compression Lug, 4/0 AWG, 1/2" Stud, 1-Hole

(No Ratings)
SKU: 94634
Price: $10.17
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94634 is a short-barrel compression lug engineered to terminate 4/0 AWG fine-strand flexible conductors to a 1/2" stud. It uses high-conductivity seamless copper with electro-tin plating and includes a flared (belled) barrel entry to ease insertion of fine-strand cable.

Designed for applications including welding, battery, DLO and other flexible cable systems, the lug is UL 486AB listed for applications through 35kV and features a single mounting hole and an inspection window for crimp verification.

Key Features

  • Fits 4/0 AWG fine-strand flexible conductors (Classes G, H, I, K, M and DLO)
  • Short barrel with flared/belled entry for easier conductor insertion
  • Seamless copper body with electro-tin plating for conductivity and corrosion resistance
  • Color-coded (Purple) die index and crimp marks printed on barrel
  • Single 1/2" stud mounting hole
  • UL 486AB listed for use through 35kV
  • Inspection window to confirm full conductor insertion

What this lug does

The Morris 94634 is built to terminate 4/0 AWG fine-strand flexible cable to equipment or buswork using a 1/2" stud. Its short-barrel design concentrates the crimp area for a compact termination where space is limited.

  • Provides a mechanical and electrical termination between a flexible conductor and a bolted stud connection
  • Includes an inspection window to help verify full conductor insertion before crimping

Typical applications

This lug is suited to systems using fine-strand flexible conductors, including welding leads, battery cables, DLO and other flexible power cables where a 1/2" stud connection is required.

  • Bus terminations and panel connections
  • Battery & charging systems
  • Welding cable terminations
  • Equipment ground and power connections requiring a 1/2" stud

Materials and corrosion protection

The body is seamless high‑conductivity copper plated with electro-tin for improved corrosion resistance and reliable conductivity at the termination point.

  • Seamless copper construction for low electrical resistance
  • Electro-tin plating helps resist corrosion on the connector surface

Installation and crimping notes

Prepare and terminate the conductor by stripping to the barrel depth, inserting the conductor fully through the flared entry until visible in the inspection window, then crimping with the die that matches the lug’s Purple color code.

  • Strip conductor to barrel depth before insertion
  • Flared (belled) entry eases insertion of fine-strand conductors
  • Use the Purple-coded die and the appropriate hydraulic or mechanical crimp tool for a compression lug of this type
  • Bolt the tongue to the 1/2" stud after crimping

Key specifications

Reference the lug’s core dimensions and rating to confirm suitability for your installation.

  • Catalog number: 94634
  • Conductor size: 4/0 AWG (fine-strand flexible classes G, H, I, K, M, DLO)
  • Stud size: 1/2"
  • Mounting: 1-hole tongue
  • Barrel: Short barrel with flared entry
  • Die color code: Purple (printed on barrel)
  • Material: Seamless copper, electro-tin plated
  • Listing/rating: UL 486AB through 35kV
  • Feature: Inspection window

Before You Order

Confirm the model number and conductor/stud sizes required before ordering to ensure compatibility with your application.

  • Verify conductor is fine-strand class (G, H, I, K, M, or DLO) and 4/0 AWG
  • Confirm the mating stud is 1/2" and that a 1-hole tongue meets your mechanical requirements
  • Use the Purple die specified for crimping this lug

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94634 Copper Flex-Cable Short-Barrel Compression Lug, 4/0 AWG, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU94634
TypeCopper Flex-Cable Short-Barrel Compression Lug
Wire Size4/0 AWG
Stud Size1/2"
Mounting Type1-Hole
BarrelShort Barrel, flared/belled entry
Die Color CodePurple
MaterialSeamless Copper, Tin-Plated
RatingUL 486AB through 35kV
