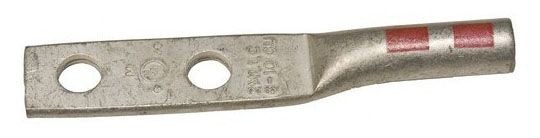

Morris 94367 Copper Long-Barrel Compression Lug, 4/0 AWG, 3/8" Stud, 2-Hole

(No Ratings)
SKU: 94367
Price: $16.61
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94367 is a 2-hole copper long-barrel compression lug for terminating a 4/0 AWG stranded conductor to a 3/8-inch stud. It is intended for connections to bus, panels and equipment with a 3/8-inch bolt.

The lug is made from high-conductivity seamless copper with electro-tin plating. Its barrel has a purple die index and printed crimp marks, and includes an inspection window.

Key Features

  • For 4/0 AWG stranded conductors and a 3/8-inch stud
  • 2-hole mounting tongue and long barrel for multiple crimps
  • Seamless copper construction with electro-tin plating
  • Purple die index, printed crimp marks and inspection window
  • UL 486AB listed for applications through 35kV

Conductor Size and Mounting

The Morris 94367 is sized for a 4/0 AWG stranded conductor and has a 2-hole mounting tongue for a 3/8-inch stud connection. Its stated uses include connecting copper conductors to bus, panels and equipment with a 3/8-inch bolt.

Copper Construction and Barrel Features

The lug uses high-conductivity seamless copper with electro-tin plating. The long barrel accommodates multiple crimps and carries a purple die index and printed crimp marks; an inspection window is also included.

Applications and Installation

For installation, strip the conductor to the barrel depth, insert it fully and crimp with the purple-coded die. The tongue is then bolted to the 3/8-inch stud.

UL Listing

Morris 94367 is UL 486AB listed for applications through 35kV.

Before You Order

Confirm the conductor is 4/0 AWG stranded and that the 2-hole lug and 3/8-inch stud connection suit the intended installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94367 Copper Long-Barrel Compression Lug, 4/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94367
Product TypeCopper long-barrel compression lug
Wire Size4/0 AWG stranded
Stud Size3/8 inch
Mounting Type2-hole
BarrelLong
Die Color CodePurple
Material and platingSeamless copper, electro-tin plated
CertificationsUL 486AB listed through 35kV
