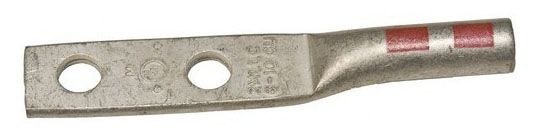

Morris 94361 Copper Long-Barrel Compression Lug, 3/0 AWG, 3/8" Stud, 2-Hole

(No Ratings)
SKU: 94361
Price: $15.19
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94361 is a two-hole, long-barrel compression lug for terminating a stranded 3/0 AWG copper conductor to a 3/8-inch stud or bolt.

It is made from seamless copper with electro-tin plating. The barrel has an orange die index, printed crimp marks and an inspection window.

Key Features

  • For stranded 3/0 AWG copper conductors
  • Two-hole mounting for a 3/8-inch stud or bolt
  • Seamless copper construction with electro-tin plating
  • Orange die index, printed crimp marks and inspection window
  • UL 486AB Listed for applications through 35kV

Conductor and mounting configuration

Morris 94361 is sized for a stranded 3/0 AWG conductor and has a two-hole tongue for mounting on a 3/8-inch stud or bolt. Its long barrel accommodates multiple crimps.

Copper construction and barrel features

The lug is made from high-conductivity seamless copper with electro-tin plating. An orange die index and crimp marks are printed on the barrel, which also has an inspection window.

Installation and crimping

Strip the conductor to the barrel depth, insert it fully and crimp using the orange-coded die. Bolt the lug tongue to the 3/8-inch stud.

UL listing

Morris 94361 is UL 486AB Listed for applications through 35kV.

Before You Order

Confirm that the conductor is stranded 3/0 AWG and that the mounting point accepts a 3/8-inch stud or bolt.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94361 Copper Long-Barrel Compression Lug, 3/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94361
Product TypeCopper long-barrel compression lug
Wire Size3/0 AWG stranded
Stud Size3/8 inch
Mounting Type2-hole
Material and platingSeamless copper, electro-tin plated
Die index colorOrange
CertificationsUL 486AB Listed through 35kV
