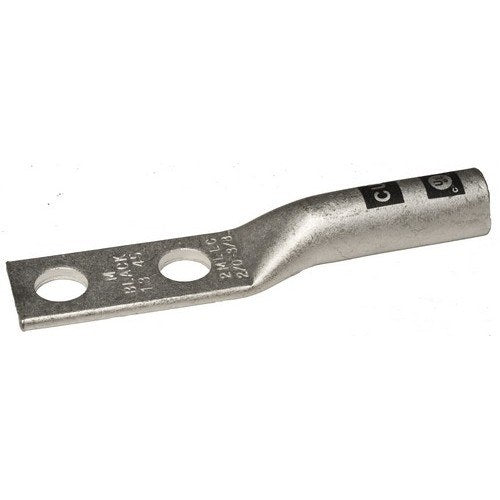

Morris 94354 Copper Long-Barrel Compression Lug, 2/0 AWG, 3/8" Stud, 2-Hole

(No Ratings)
SKU: 94354
Price: $11.50
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94354 is a copper long-barrel compression lug for terminating a 2/0 AWG stranded conductor at a 3/8-inch stud. Its tongue has two mounting holes.

The lug is made of seamless copper with electro-tin plating. A black color-coded die index and crimp marks are printed on the barrel, which also includes an inspection window.

Key Features

  • For 2/0 AWG stranded conductors and a 3/8-inch stud
  • Two-hole tongue and long barrel
  • Seamless copper construction with electro-tin plating
  • Black die index and crimp marks printed on the barrel
  • Inspection window
  • UL 486AB listed through 35 kV

Conductor Size and Mounting Configuration

Morris 94354 is designed for a 2/0 AWG stranded conductor and a 3/8-inch stud. Its two-hole tongue provides a two-hole mounting configuration for terminating the conductor to a compatible bus, panel or piece of equipment.

Copper Construction and Barrel Features

The lug is made from high-conductivity seamless copper with electro-tin plating. Its long barrel accommodates multiple crimps and has an inspection window. The barrel is printed with a black color-coded die index and crimp marks.

Installation and Crimping

The stated installation method is to strip the conductor to the barrel depth, insert it fully and crimp using the black-coded die. Bolt the lug tongue to a 3/8-inch stud.

UL Listing

The Morris 94354 is listed to UL 486AB for applications through 35 kV.

Before You Order

Confirm the conductor size, 3/8-inch stud size and two-hole mounting configuration match the termination.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94354 Copper Long-Barrel Compression Lug, 2/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94354
Product TypeCopper long-barrel compression lug
Wire Size2/0 AWG stranded
Stud Size3/8 inch
Mounting Type2-hole
MaterialSeamless copper
PlatingElectro-tin
Die index colorBlack
CertificationsUL 486AB through 35 kV
