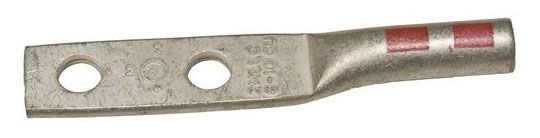

Morris 94350 Copper Long-Barrel Compression Lug, 1/0 AWG, 1/2" Stud, 2-Hole

Product Overview

The Morris 94350 is a long‑barrel copper compression lug designed to terminate 1/0 AWG stranded conductors to a 1/2" stud using two mounting holes. Constructed from high‑conductivity seamless copper with electro‑tin plating, it includes a color‑coded (pink) die index and inspection window.

This lug is UL 486AB listed for applications through 35 kV and features a long barrel that accommodates multiple crimps and dual mounting holes for improved contact integrity.

Key Features

• Seamless high‑conductivity copper body with electro‑tin plating
• Long barrel for multiple crimps and reliable conductor retention
• Color‑coded pink die index and crimp marks printed on the barrel
• Inspection window for verifying conductor insertion
• 2‑hole tongue for secure 1/2" stud mounting
• UL 486AB listed for use through 35 kV

What this lug does

The Morris 94350 provides a secure mechanical and electrical termination for 1/0 AWG stranded copper conductors to equipment or bus bars that accept a 1/2" stud. The long‑barrel design supports multiple crimps for a durable connection and the two mounting holes on the tongue increase contact integrity when fastened.

• Terminates 1/0 AWG stranded conductors
• Connects to a 1/2" stud using the 2‑hole tongue

Where to use it

Use the 94350 when terminating 1/0 AWG copper conductors to panels, buswork, equipment lugs, or other hardware that accept a 1/2" bolt. The product is UL 486AB listed through 35 kV, indicating suitability for applications covered by that listing.

• Panels, bus bars, and equipment with 1/2" studs
• Indoor electrical terminations where UL 486AB listing applies

Installation and crimping guidance

Terminate conductors by stripping to the barrel depth, fully inserting the conductor into the long barrel, and crimping using the pink‑coded (die index) crimp die specified for this size. Verify conductor insertion through the inspection window and secure the lug tongue to the 1/2" stud with appropriate hardware and torque.

• Strip conductor to the barrel depth and insert fully
• Crimp with the pink‑coded die for 1/0 AWG
• Verify insertion via inspection window before bolting
• Bolt tongue to 1/2" stud using proper torque (torque value not provided — confirm separately)

Key specifications

This section lists the core, verified technical details for the Morris 94350 lug.

• Brand: Morris
• Catalog number: 94350
• Type: Copper long‑barrel compression lug
• Conductor size: 1/0 AWG (stranded)
• Stud size: 1/2"
• Mounting: 2‑hole tongue
• Barrel: Long barrel with inspection window
• Die color code: Pink
• Material/finish: Seamless copper, electro‑tin plated
• Listing: UL 486AB through 35 kV

Before You Order

Confirm the model number and quantity required before ordering. Verify that the conductor size (1/0 AWG stranded) and the equipment stud size (1/2") match your application and that UL 486AB listing through 35 kV meets your project requirements.

• Confirm conductor is 1/0 AWG stranded
• Confirm mating hardware accepts a 1/2" stud and 2‑hole lug tongue
• Confirm required crimp die matches the pink die index for 1/0 AWG
• Torque specification for bolting is not provided here — obtain required torque values from the equipment or project specification
