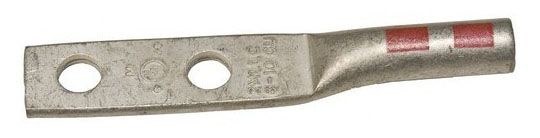

Morris 94348 Copper Long-Barrel Compression Lug, 1/0 AWG, 3/8" Stud, 2-Hole

(No Ratings)
SKU: 94348
Price: $11.97
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94348 is a seamless copper long‑barrel compression lug engineered to terminate 1/0 AWG stranded conductors to a 3/8" stud. The lug features electro‑tin plating, a color‑coded (pink) die index with crimp marks, dual mounting holes and an inspection window.

Rated UL 486AB for applications through 35 kV, the part is designed for bolting to bus, panels, and equipment where a secure 2‑hole connection is required.

Key Features

  • Seamless, high‑conductivity copper body with electro‑tin plating for corrosion resistance
  • Long barrel accommodates multiple crimps and includes an inspection window
  • Color‑coded pink die index and crimp marks printed on the barrel for correct tooling
  • Dual (2‑hole) tongue for improved contact integrity on a 3/8" stud
  • UL 486AB listed for use through 35 kV

Function and intended use

The Morris 94348 terminates 1/0 AWG stranded copper conductors to equipment or buswork using a 3/8" stud. Its 2‑hole tongue provides a bolted connection suitable for panels, bus bars, and other electrical equipment requiring a secure mechanical and electrical joint.

Conductor and stud compatibility

This SKU is specified for 1/0 AWG stranded copper conductors and fits a 3/8" stud.

  • Conductor size: 1/0 AWG (stranded)
  • Stud size: 3/8"
  • Mounting: 2‑hole tongue

Crimping and mounting guidance

The lug is a compression type designed for crimp termination. Strip the conductor to the barrel depth, insert the conductor fully, and crimp using the pink color‑coded die specified on the barrel. After crimping, bolt the lug tongue to the 3/8" stud.

  • Barrel accommodates multiple crimps for secure compression
  • Die color code (pink) and crimp marks are printed on the barrel to match tooling
  • Inspection window allows visual verification of conductor insertion before crimping

Materials, plating, and listing

The 94348 is manufactured from high‑conductivity seamless copper and finished with electro‑tin plating to resist corrosion. It is UL 486AB listed for use through 35 kV.

  • Material: seamless copper
  • Finish: electro‑tin plating
  • Listing: UL 486AB through 35 kV

Barrel type, die color, and mounting configuration

This lug features a long barrel to accept multiple crimps and a printed pink die index for tooling. The tongue uses two mounting holes to improve contact integrity when bolted to a 3/8" stud.

  • Barrel: long barrel with inspection window
  • Die color: pink
  • Mounting: dual (2‑hole) tongue

Before You Order

Confirm the model number and quantity required before ordering. Verify that your conductor is 1/0 AWG stranded and that the termination point accepts a 3/8" stud with a 2‑hole lug.

  • Check required crimp die matches the pink die index printed on the barrel.
  • Ensure application voltage and system requirements are compatible with UL 486AB listing through 35 kV.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94348 Copper Long-Barrel Compression Lug, 1/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU94348; '94348
TypeCopper Long‑Barrel Compression Lug
Wire Size1/0 AWG (stranded)
Stud Size3/8"
Mounting Type2‑Hole
BarrelLong barrel with inspection window
Die Color CodePink
MaterialSeamless copper, tin‑plated
RatingUL 486AB through 35 kV
WeightNot specified
