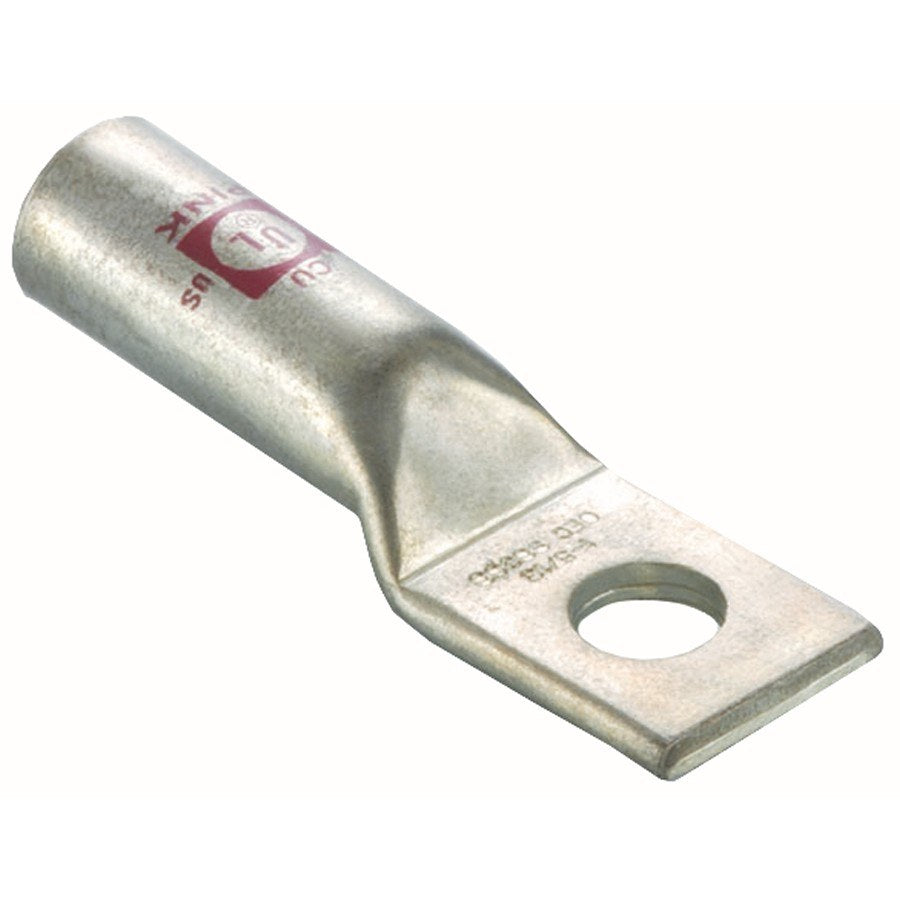

Morris 94270 Copper Long-Barrel Compression Lug, 400 MCM, 1/2" Stud, 1-Hole
Description
Product Overview
The Morris 94270 is a long-barrel copper compression lug designed to terminate 400 MCM copper conductors to a 1/2" stud using a single mounting hole. It is made from high-conductivity seamless copper and is electro-tin plated for corrosion resistance.
The barrel is color-coded with a blue die index and printed crimp marks, includes an inspection window, and is UL 486AB listed for applications through 35 kV.
Key Features
- Seamless high-conductivity copper construction
- Electro-tin plating for corrosion resistance
- Long barrel accommodates multiple crimps and has printed crimp marks
- Blue color-coded die index on the barrel
- Inspection window for verifying conductor insertion
- Single (1-hole) tongue to fit a 1/2" stud
- UL 486AB listed for use through 35 kV
What this lug does
The Morris 94270 provides a secure mechanical and electrical termination for 400 MCM copper conductors to equipment or buswork using a 1/2" stud. Its long barrel is intended to accept one or more compression crimps to form a reliable conductor-to-lug connection.
- Terminates 400 MCM copper conductors
- Mounts to a 1/2" stud using a single hole tongue
- Long-barrel design supports multiple crimps for a robust joint
Typical applications
Use this lug where a 400 MCM copper conductor must be bolted to panels, bus bars, transformers, or other equipment sized for a 1/2" stud. The product is intended for copper conductors only.
- Panelboards and switchgear terminations
- Bus connections and equipment grounding where a 1/2" stud is specified
- General power distribution terminations for 400 MCM copper
Installation and crimping
Prepare and crimp the conductor according to the lug markings and industry crimping best practices. The barrel has a blue die index and printed crimp marks to guide tooling selection and crimp placement. An inspection window allows visual verification that the conductor is fully inserted before crimping.
- Strip conductor to the barrel depth, insert the conductor fully until visible through the inspection window
- Use the Blue-coded die for the specified crimp profile
- Crimp the long barrel; multiple crimps may be applied as required by installer practice
Key specifications
Technical details below summarize the product's verified attributes. Use these values to confirm fit and compatibility with your conductor and hardware.
- Manufacturer: Morris
- Catalog number: 94270
- Conductor size: 400 MCM (copper)
- Stud size / mounting hole: 1/2", single hole
- Barrel style: Long barrel with inspection window
- Material/finish: Seamless copper, electro-tin plated
- Die color code: Blue (printed on barrel)
- Listing: UL 486AB through 35 kV
Before You Order
Confirm the model number and conductor/stud sizes before ordering to ensure compatibility. This lug is specified for 400 MCM copper conductors and a 1/2" stud; do not use for aluminum conductors unless specifically allowed by your application standards.
- Verify conductor is copper and sized 400 MCM
- Confirm the mating stud or bolt is 1/2"
- Confirm required quantity and tooling (Blue die) for crimping
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 94270 Copper Long-Barrel Compression Lug, 400 MCM, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 94270; '94270 |
| Product type | Copper Long-Barrel Compression Lug |
| Conductor size | 400 MCM (copper) |
| Stud size | 1/2" |
| Mounting Type | 1-Hole |
| Barrel | Long Barrel with inspection window |
| Die color code | Blue |
| Material | Seamless copper, electro-tin plated |
| Rating | UL 486AB Listed through 35 kV |
| Price | See current product listing |
