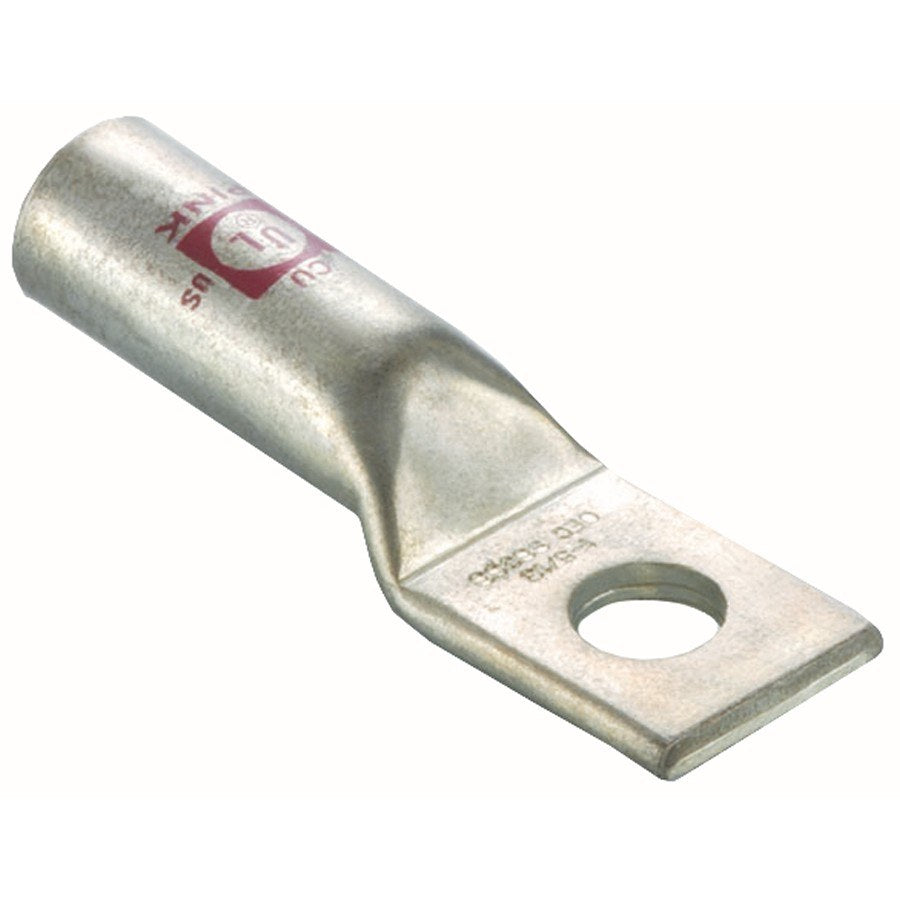

Morris 94258 Copper Long-Barrel Compression Lug, 250 MCM, 1/2" Stud, 1-Hole

(No Ratings)
SKU: 94258
Price: $16.52
Free shipping on orders over $1,500

Description

Product Overview

Morris 94258 is a long-barrel compression lug designed to terminate a 250 MCM copper conductor to a 1/2" stud with a single mounting hole.

Constructed from high-conductivity seamless copper with electro-tin plating, it features a color-coded (Yellow) die index and is UL 486AB listed for use through 35 kV.

Key Features

  • Seamless high-conductivity copper construction
  • Electro-tin plating for corrosion resistance
  • Long barrel accommodates multiple crimps and includes an inspection window
  • Color-coded Yellow die index and crimp marks printed on the barrel
  • Single 1-hole tongue fits a 1/2" stud
  • UL 486AB listed for applications through 35 kV

Purpose and common use

This lug terminates a 250 MCM copper conductor to equipment, bus bars, panels, or other hardware that accepts a 1/2" stud. The long-barrel design is intended to accept multiple crimps for a secure mechanical and electrical connection.

  • Designed for 250 MCM copper conductors
  • Single-hole tongue configured for a 1/2" bolt or stud
  • Typical locations: bus, panels, and equipment terminations

Materials and corrosion protection

The body is machined from high-conductivity seamless copper and finished with electro-tin plating to resist corrosion while maintaining good electrical conductivity.

  • Material: seamless copper
  • Finish: electro-tin plating

Installation and crimping

Strip the conductor to the barrel depth, insert the conductor fully into the long barrel, and crimp using the Yellow-coded die specified for this size. The barrel includes printed crimp marks and an inspection window to help verify proper insertion and crimp placement.

  • Strip conductor to barrel depth before insertion
  • Crimp with Yellow-coded die (die color printed on barrel)
  • Barrel inspection window aids verification of full insertion

Electrical rating and certification

The lug is UL 486AB listed for use through 35 kV, indicating it meets the applicable UL requirements for compression lugs in its rating range.

  • Listing: UL 486AB
  • Rated for applications through 35 kV

Conductor and stud compatibility

This specific SKU is sized for one conductor size and one stud size; confirm those dimensions match your application before ordering.

  • Conductor size: 250 MCM (copper)
  • Stud/bolt size: 1/2"
  • Mounting: 1-hole tongue

Before You Order

Confirm the model number and that a 250 MCM copper conductor and 1/2" stud are appropriate for your installation before ordering.

  • Verify conductor is copper and sized 250 MCM
  • Verify receiving stud or bolt is 1/2"
  • Confirm required quantity and crimping die (Yellow) prior to installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94258 Copper Long-Barrel Compression Lug, 250 MCM, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU94258; '94258
Product TypeCopper Long-Barrel Compression Lug
Wire Size250 MCM
Stud Size1/2"
Mounting Type1-Hole
BarrelLong Barrel
Die Color CodeYellow
MaterialSeamless Copper, Tin-Plated
RatingUL 486AB through 35 kV
Price16.52
