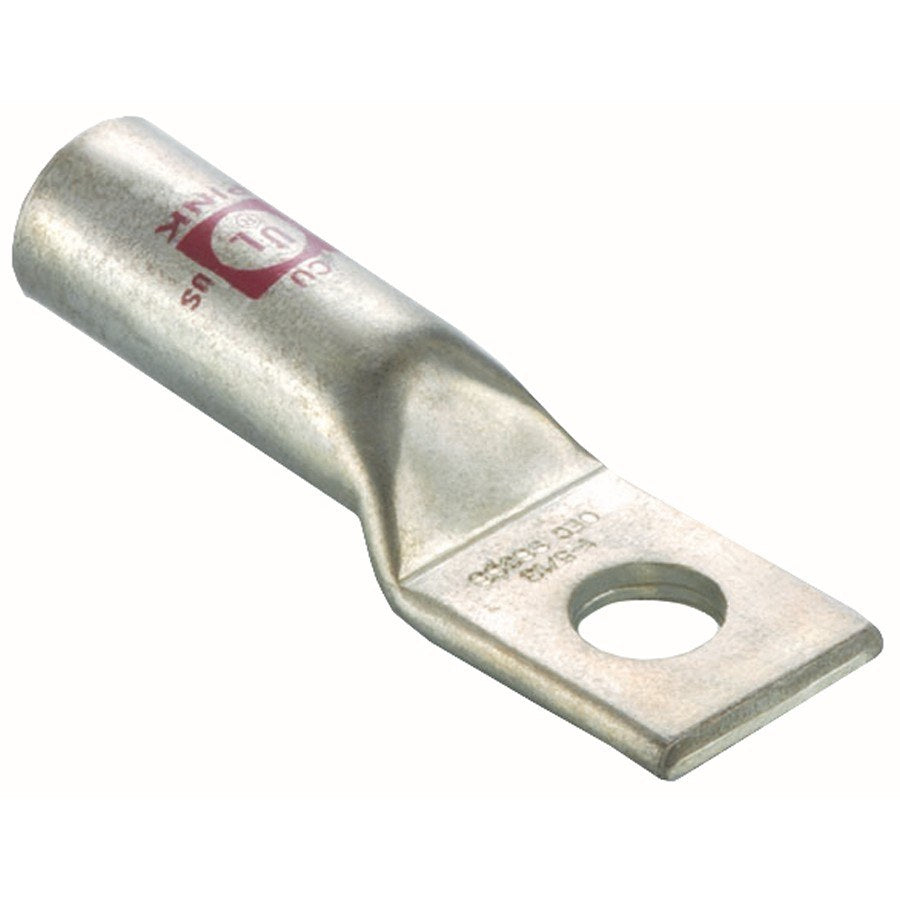

Morris 94246 Copper Long-Barrel Compression Lug, 3/0 AWG, 1/2" Stud, 1-Hole

Product Overview

The Morris 94246 is a one-hole, long-barrel compression lug for terminating a 3/0 AWG stranded conductor to a 1/2-inch stud.

It is made from high-conductivity seamless copper with electro-tin plating. The barrel has an orange color-coded die index, printed crimp marks, and an inspection window.

Key Features

• Fits 3/0 AWG stranded conductors and a 1/2-inch stud
• Seamless copper construction with electro-tin plating
• Long barrel accommodates multiple crimps
• Orange-coded die index and crimp marks printed on the barrel
• Inspection window
• UL 486AB listed for applications through 35kV

Conductor and Stud Fit

The Morris 94246 is sized for a 3/0 AWG stranded conductor and mounts through one hole to a 1/2-inch stud. Its long barrel accommodates multiple crimps.

Copper Construction and Barrel Features

The lug uses high-conductivity seamless copper with electro-tin plating. An orange die index and crimp marks are printed on the barrel, which also has an inspection window.

Installation

Strip the conductor to the barrel depth and insert it fully. Crimp with the orange-coded die, then bolt the lug tongue to the 1/2-inch stud.

Applications and Listing

This lug is described for terminating 3/0 AWG copper conductors to bus, panels, and equipment with a 1/2-inch bolt. It is UL 486AB listed for applications through 35kV.

Before You Order

Confirm that the conductor is 3/0 AWG stranded and that the mounting stud is 1/2 inch.
