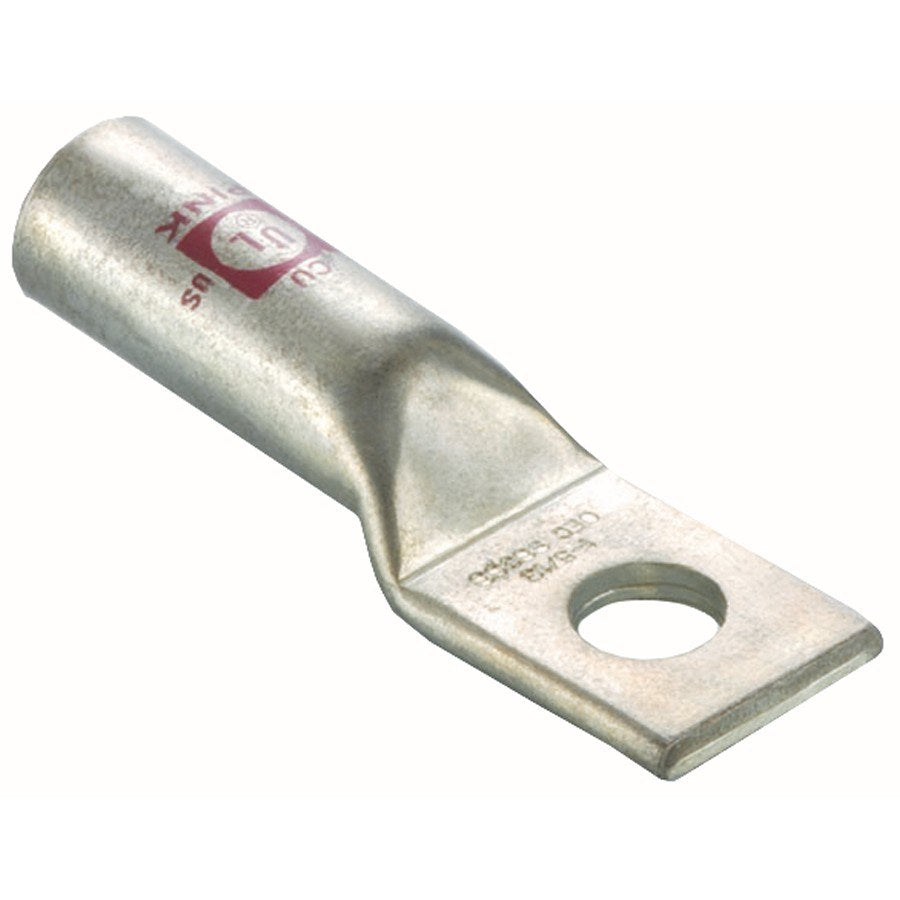

Morris 94239 Copper Long-Barrel Compression Lug, 2/0 AWG, 1/2" Stud, 1-Hole

(No Ratings)
SKU: 94239
Price: $10.08
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94239 is a one-hole, copper long-barrel compression lug for terminating 2/0 AWG stranded copper conductors to a 1/2-inch stud.

It has a seamless, high-conductivity copper body with electro-tin plating. The barrel includes a black die index, printed crimp marks and an inspection window.

Key Features

  • For 2/0 AWG stranded copper conductors
  • One-hole tongue for a 1/2-inch stud
  • Seamless copper construction with electro-tin plating
  • Long barrel accommodates multiple crimps
  • Black die index and crimp marks printed on the barrel
  • Inspection window
  • UL 486AB Listed through 35kV

Conductor and Stud Compatibility

Morris 94239 is sized for a 2/0 AWG stranded copper conductor and mounts to a 1/2-inch stud through its single mounting hole. It is described for connecting 2/0 AWG copper conductors to bus, panels and equipment with a 1/2-inch bolt.

Barrel Design and Crimp Identification

The long barrel is made from seamless, high-conductivity copper with electro-tin plating. Its length accommodates multiple crimps, and the barrel has an inspection window.

  • Black die index printed on the barrel
  • Crimp marks printed on the barrel

Applications and UL Listing

This lug is intended to terminate a 2/0 AWG copper conductor at a 1/2-inch bolt connection. The product is UL 486AB Listed through 35kV.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94239 Copper Long-Barrel Compression Lug, 2/0 AWG, 1/2" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94239
Product TypeCopper long-barrel compression lug
Wire Size2/0 AWG, stranded
Stud Size1/2 in
Mounting Type1-hole
BarrelLong barrel
MaterialSeamless, high-conductivity copper
PlatingElectro-tin
Die index colorBlack
CertificationsUL 486AB Listed through 35kV
