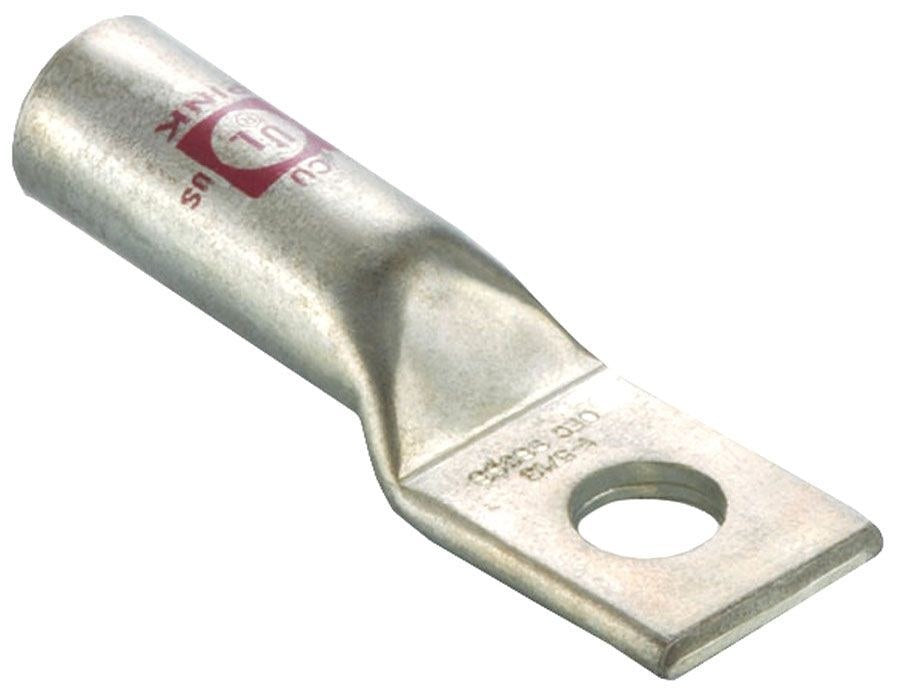

Morris 94227 Copper Long-Barrel Compression Lug, #1 AWG, 3/8" Stud, 1-Hole

Product Overview

The Morris 94227 is a one-hole, long-barrel copper compression lug for terminating stranded #1 AWG conductor on a 3/8-inch stud.

It has a seamless copper body with electro-tin plating, a green color-coded die index and crimp marks printed on the barrel, and an inspection window.

Key Features

• For stranded #1 AWG conductor and a 3/8-inch stud
• Seamless copper construction with electro-tin plating
• Long barrel with green die index and printed crimp marks
• One-hole mounting and an inspection window
• UL 486AB listed through 35kV

Conductor and Stud Fit

Morris 94227 is sized for stranded #1 AWG conductor and a 3/8-inch stud. Its tongue has one mounting hole for bolting to a matching stud.

Copper Construction and Die Identification

The lug is made from seamless copper with electro-tin plating. Its long barrel accommodates multiple crimps and includes an inspection window.

A green die index and crimp marks are printed on the barrel to identify the specified die color and provide visible markings during termination.

Termination and Installation

The lug is intended to terminate a #1 AWG copper conductor to bus, panels, or equipment with a 3/8-inch bolt. The conductor is stripped to barrel depth, inserted fully, and crimped with the green-coded die; the lug tongue is then bolted to the stud.

UL Listing

Morris 94227 is UL 486AB listed through 35kV.

Before You Order

Confirm that the conductor is stranded #1 AWG and that the connection uses a 3/8-inch stud.

• Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94227 Copper Long-Barrel Compression Lug, #1 AWG, 3/8" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
