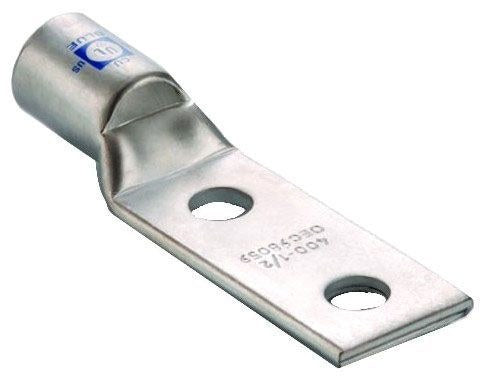

Morris 94182 Copper Short-Barrel Compression Lug, #350 AWG, 3/8" Stud, 2-Hole

(No Ratings)
SKU: 94182
Price: $17.53
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94182 is a short-barrel compression lug designed to terminate #350 AWG copper conductors to a 3/8" stud. It features a dual-hole tongue for secure bolted connections and an inspection window for verifying conductor insertion.

Constructed from high-conductivity seamless copper with electro-tin plating, this lug includes a red color-coded die index and crimp marks printed on the barrel. It is UL 486AB listed for applications through 35kV.

Key Features

  • Seamless high-conductivity copper construction
  • Electro-tin plating for corrosion resistance
  • Red color-coded die index and printed crimp marks
  • Short barrel with inspection window
  • 2-hole tongue for superior contact integrity
  • UL 486AB listed through 35kV

What this lug does

The Morris 94182 provides a secure, low-resistance termination for #350 AWG copper conductors where connection to a 3/8" stud is required. Its two-hole tongue is intended for bolted attachment to bus bars, panels, or equipment, offering improved contact integrity compared with single-hole tongues.

  • Terminates #350 AWG copper conductor to a 3/8" stud
  • Dual mounting holes for stable, redundant bolted connection
  • Inspection window for confirming full conductor insertion

Installation and crimping

Prepare the conductor and crimp the lug using the red-coded die specified for this barrel. The barrel includes printed crimp marks and a die index to help ensure correct crimp placement and compression quality.

  • Strip conductor to the barrel depth, insert fully through the inspection window
  • Crimp using the Red die corresponding to the printed die index
  • Bolt the tongue to a 3/8" stud using the two mounting holes

Key specifications

The following specifications describe the Morris 94182 lug exactly as designated by the catalog information.

  • Brand: Morris
  • Catalog number: 94182
  • Type: Copper short-barrel compression lug
  • Conductor size: #350 AWG (copper)
  • Stud size: 3/8"
  • Mounting: 2-hole tongue
  • Barrel: Short barrel with inspection window
  • Die color code: Red
  • Material: Seamless copper, electro-tin plated
  • Rating: UL 486AB listed through 35kV

Before You Order

Confirm the model number and quantity required before ordering. Ensure the lug’s conductor and stud sizes match your application and that crimp tooling is compatible with the red die index printed on the barrel.

  • Verify conductor is #350 AWG (copper) and the mating stud is 3/8"
  • Confirm you have or will use the red-coded die for proper crimping
  • Check UL 486AB rating and 35kV listing for suitability in your system

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94182 Copper Short-Barrel Compression Lug, #350 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU94182; '94182
TypeCopper Short-Barrel Compression Lug
Wire Size#350 AWG
Stud Size3/8"
Mounting Type2-Hole
BarrelShort Barrel with inspection window
Die Color CodeRed
MaterialSeamless Copper, Electro-Tin Plated
RatingUL 486AB through 35kV
Price17.53
