Morris 94172 Copper Short-Barrel Compression Lug, 4/0 AWG, 3/8" Stud, 2-Hole
Description
Product Overview

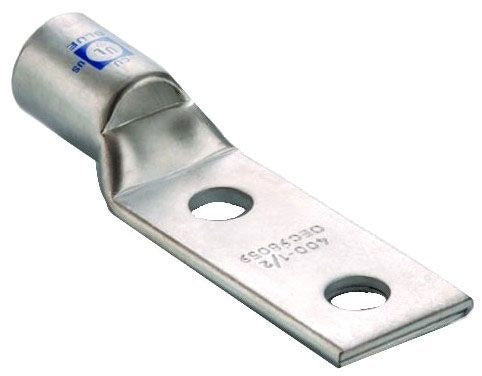

The Morris 94172 is a short-barrel compression lug for terminating a 4/0 AWG conductor at a 3/8-inch stud connection. Its two-hole tongue is intended for mounting with two fasteners.
The lug is made from seamless, high-conductivity copper with electro-tin plating. It has a purple die index and printed crimp marks on the barrel, plus an inspection window.
Key Features
- For 4/0 AWG conductors and a 3/8-inch stud connection
- Two-hole mounting tongue
- Seamless copper construction with electro-tin plating
- Purple-coded die index and printed crimp marks
- Inspection window
- UL 486AB Listed for applications through 35kV
Conductor and Stud Connection
Morris 94172 is sized for a 4/0 AWG conductor and a 3/8-inch stud connection. Its two-hole mounting configuration provides two fastening points on the lug tongue.
The catalog describes this lug for terminating 4/0 AWG copper conductors to bus, panels and equipment with a 3/8-inch bolt.
Copper Construction and Crimp Identification
The lug uses seamless, high-conductivity copper with electro-tin plating. The barrel has a purple color-coded die index and printed crimp marks; an inspection window is also included.
- Short-barrel design
- Electro-tin plating is described as providing corrosion resistance
- UL 486AB Listed for applications through 35kV
Installation Notes
The stated installation sequence is to strip the conductor to the barrel depth, insert it fully and crimp with the purple-coded die. The lug tongue is then bolted to the 3/8-inch stud.
Before You Order
Confirm that the conductor is 4/0 AWG and that the connection uses a 3/8-inch stud with a two-hole mounting pattern.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 94172 Copper Short-Barrel Compression Lug, 4/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 94172 |
| Product Type | Copper short-barrel compression lug |
| Wire Size | 4/0 AWG |
| Stud Size | 3/8 inch |
| Mounting Type | 2-hole |
| Material | Seamless copper |
| Plating | Electro-tin |
| Die index color | Purple |
| Certifications | UL 486AB Listed through 35kV |
| Inspection window | Yes |
