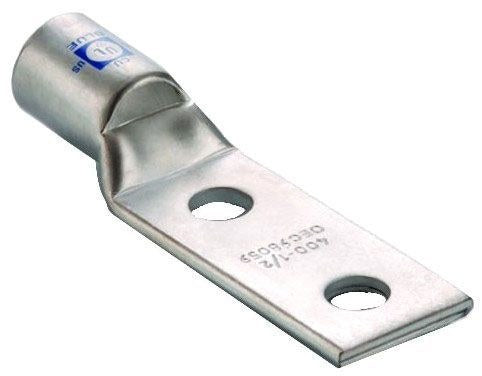

Morris 94170 Copper Short-Barrel Compression Lug, 4/0 AWG, 5/16" Stud, 2-Hole
Morris 94170 Copper Short-Barrel Compression Lug, 4/0 AWG, 5/16" Stud, 2-Hole
Regular price
$9.43
Regular price
Sale price
$9.43
SKU:94170
Quantity
Couldn't load pickup availability
Morris's 94170 is a copper short-barrel compression lug that terminates a 4/0 AWG conductor on a 5/16" stud with 2-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Purple) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Dual Mounting Holes for Superior Contact Integrity
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94170 |
| Type | Copper Short-Barrel Compression Lug |
| Conductor Size | 4/0 AWG |
| Stud Size | 5/16" |
| Mounting | 2-Hole |
| Barrel | Short Barrel |
| Die Color Code | Purple |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate 4/0 AWG copper conductors to bus, panels, and equipment with a 5/16" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the Purple-coded die; bolt the tongue to the 5/16" stud.
