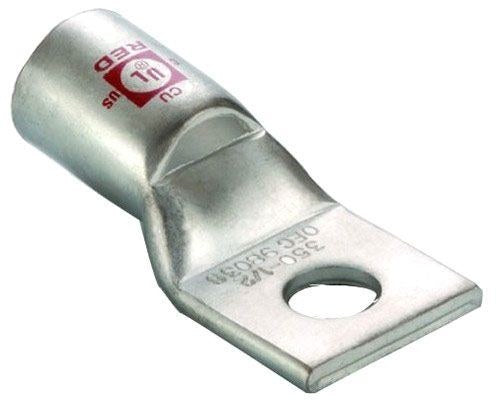

Morris 94091 Copper Short-Barrel Compression Lug, 400 MCM, 5/8" Stud, 1-Hole

(No Ratings)
SKU: 94091
Price: $14.31
Free shipping on orders over $1,500

Description

Product Overview

The Morris 94091 is a 1-hole copper short-barrel compression lug for terminating a 400 MCM conductor to a 5/8-inch stud.

It is made from high-conductivity seamless copper with electro-tin plating. The barrel includes a blue die index, printed crimp marks, and an inspection window.

Key Features

  • For 400 MCM conductors and a 5/8-inch stud
  • High-conductivity seamless copper with electro-tin plating
  • Blue color-coded die index and crimp marks printed on the barrel
  • Inspection window and single mounting hole
  • UL 486AB Listed through 35kV

Conductor Termination and Mounting

The Morris 94091 terminates a 400 MCM conductor to a 5/8-inch stud using a single-hole tongue. Its stated applications include connecting copper conductors to bus, panels, and equipment with a 5/8-inch bolt.

Barrel Features for Crimping

This short-barrel lug has a blue color-coded die index and crimp marks printed on the barrel. An inspection window is also provided.

  • Strip the conductor to the barrel depth and insert it fully.
  • Crimp with the blue-coded die, then bolt the lug tongue to the 5/8-inch stud.

Applications and UL Listing

The 94091 is UL 486AB Listed through 35kV. Confirm that this listing and the lug's stated conductor and stud sizes suit the intended application.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 94091 Copper Short-Barrel Compression Lug, 400 MCM, 5/8" Stud, 1-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number94091
Product TypeCopper short-barrel compression lug
Wire Size400 MCM
Stud Size5/8 inch
Mounting Type1-hole
BarrelShort barrel
MaterialHigh-conductivity seamless copper, electro-tin plated
Die indexBlue
CertificationsUL 486AB Listed through 35kV
