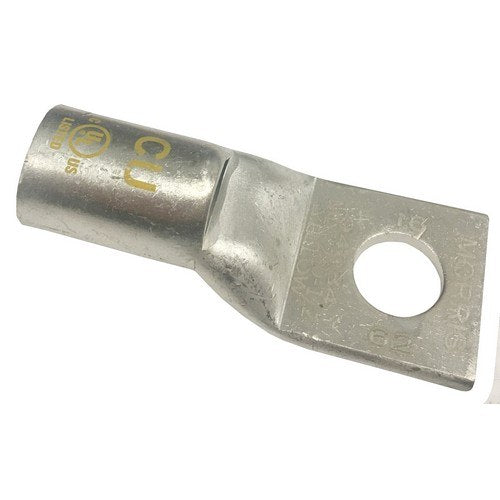

Morris 94082 Copper Short-Barrel Compression Lug, 250 MCM, 3/8" Stud, 1-Hole

Product Overview

The Morris 94082 is a one-hole, short-barrel copper compression lug for terminating a 250 MCM copper conductor at a 3/8-inch stud.

It is made from seamless, high-conductivity copper with electro-tin plating. The barrel has a yellow die index, printed crimp marks and an inspection window.

Key Features

• For 250 MCM copper conductors; 3/8-inch stud opening and one-hole mounting
• Seamless copper body with electro-tin plating
• Short barrel with yellow color-coded die index, printed crimp marks and inspection window
• UL 486AB Listed for applications through 35 kV

Conductor Size and Stud Connection

Morris 94082 is sized for a 250 MCM copper conductor and connects to a 3/8-inch stud. Its single-hole tongue provides one mounting point.

• Conductor size: 250 MCM
• Stud size: 3/8 inch
• Mounting: one hole
• Barrel: short

Copper Construction and Barrel Features

The lug uses seamless, high-conductivity copper with electro-tin plating. Its barrel includes a yellow die index and printed crimp marks, along with an inspection window.

• Material: seamless copper
• Plating: electro-tin
• Die index: yellow

Applications and Installation

The lug is intended to terminate 250 MCM copper conductors to bus, panels and equipment using a 3/8-inch bolt. For installation, strip the conductor to the barrel depth, insert it fully, and crimp with the yellow-coded die. Bolt the lug tongue to the 3/8-inch stud.

UL Listing

The Morris 94082 is UL 486AB Listed for applications through 35 kV.

Before You Order

Confirm the conductor size and 3/8-inch stud connection match your application.
