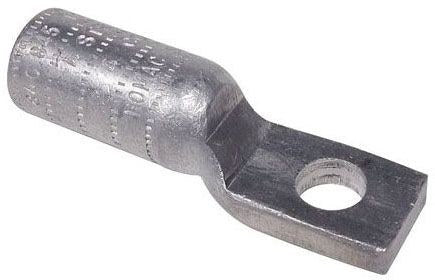

Morris 93920 Meter Socket Lug, 4/0 AWG, 3/8" Stud

Product Overview

The Morris 93920 is a dual-rated meter socket lug for terminating 4/0 AWG aluminum or copper conductors on a 3/8" stud.

It is made of high-conductivity aluminum, has an oxide-inhibitor-coated barrel with tin plating, is marked with conductor sizes and die reference, and is listed as meeting or exceeding ANSI C119.4 Class A.

Key Features

• Accepts 4/0 AWG aluminum or copper conductors
• 3/8" stud
• Uses 840 common die (single die referenced for installation)
• High-conductivity aluminum construction
• Barrel coated with oxide-inhibiting compound
• Tin plated
• Marked with conductor sizes and die reference
• Meets or exceeds ANSI C119.4 Class A

What this lug is for

The Morris 93920 is intended to terminate 4/0 AWG conductors where a 3/8" stud termination is required, including meter pans and meter sockets. It is dual rated for both aluminum and copper conductors.

• For meter socket and meter pan terminations
• Accepts 4/0 AWG aluminum or copper conductors

Materials and plating

The lug body is high-conductivity aluminum. The barrel is treated with an oxide-inhibiting compound and the lug is tin plated. The lug is marked with conductor sizes and the die reference.

• High-conductivity aluminum
• Oxide-inhibitor compound on barrel
• Tin plated finish

Crimping and die requirements

The product references the 840 common die for installation. The typical installation method is to strip the conductor, insert it into the barrel, and crimp using the referenced die.

• Uses 840 common die (one die referenced for supported sizes)
• Lug is marked with conductor sizes and die reference

Standards and ratings

The Morris 93920 is described as meeting or exceeding Class A of ANSI C119.4, which is the performance class noted for this product.

• ANSI C119.4 — Class A (meets or exceeds)

Before You Order

Confirm the part number and quantity needed.

• Verify conductor type (aluminum or copper) and that a 4/0 AWG lug with a 3/8" stud is required.
• Confirm you have access to a compatible crimping tool for the 840 common die.
