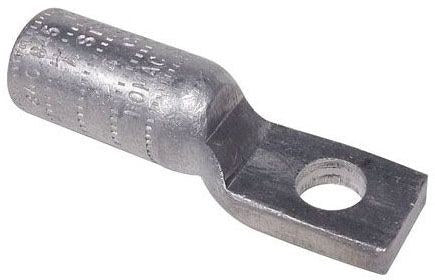

Morris 93912 Meter Socket Lug, 2/0 AWG, 3/8" Stud
Morris 93912 Meter Socket Lug, 2/0 AWG, 3/8" Stud
Regular price
$25.60
Regular price
Sale price
$25.60
SKU:93912
Quantity
Couldn't load pickup availability
Morris's 93912 is a dual-rated aluminum meter socket lug accepting 2/0 AWG aluminum or copper conductors on a 3/8" stud. It uses the 840 common die (one die installs all sizes), is made of high-conductivity aluminum with an oxide-inhibitor-coated barrel and tin plating, is marked with conductor sizes and die references, and meets or exceeds Class A of ANSI C119.4.
Key Features
- Uses 840 Common Dies - One Die Installs All Sizes
- For Meter Pan and General Applications
- Accepts Both Aluminum and Copper Conductors
- Made of High-Conductivity Aluminum
- Barrel Coated with Oxide-Inhibiting Compound
- Tin Plated
- Marked with Conductor Sizes and Die References
- Meets or Exceeds Class A of ANSI C119.4
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 93912 |
| Type | Meter Socket Lug |
| Wire Size | 2/0 AWG (Al or Cu) |
| Stud Size | 3/8" |
| Die | 840 Common |
| Material | High-Conductivity Aluminum |
| Plating | Tin |
| Rating | ANSI C119.4 Class A |
Applications
Used to terminate 2/0 AWG aluminum or copper conductors in meter pans, meter sockets, and general service applications.
Installation
Strip the conductor, insert it into the barrel, and crimp with an 840 die; the lug accepts both aluminum and copper.
