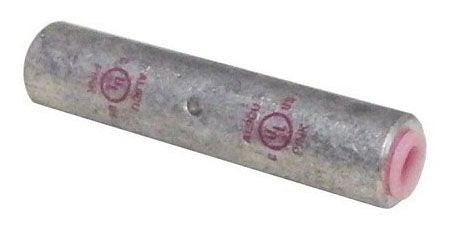

Morris 93222 Aluminum Long-Barrel Compression Splice, 3/0 AWG
Morris 93222 Aluminum Long-Barrel Compression Splice, 3/0 AWG
Regular price
$10.91
Regular price
Sale price
$10.91
SKU:93222
Quantity
Couldn't load pickup availability
Morris's 93222 is a aluminum long-barrel compression splice (butt connector) that joins two 3/0 AWG stranded conductors end to end. It is pre-filled with oxide inhibitor and AL9CU dual-rated, is made of high-conductivity seamless aluminum with electro-tin plating, has a color-coded (Ruby) die index, and is UL 486AB Listed through 35kV.
Key Features
- AL9CU Listed - For Both Aluminum and Copper Conductors
- Pre-Filled with Oxide Inhibitor
- Made of High-Conductivity Seamless Aluminum
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Inline Butt Splice
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 93222 |
| Type | Aluminum Long-Barrel Compression Splice |
| Conductor Size | 3/0 AWG (Stranded) |
| Barrel | Long Barrel |
| Die Color Code | Ruby |
| Material | Seamless Aluminum, Tin-Plated |
| Rating | UL 486AB Through 35kV; AL9CU Dual-Rated |
Applications
Used to splice two 3/0 AWG aluminum or copper conductors inline in feeders, services, and equipment wiring.
Installation
Insert one conductor into each end of the barrel to the center stop and crimp both sides with the Ruby-coded die.
