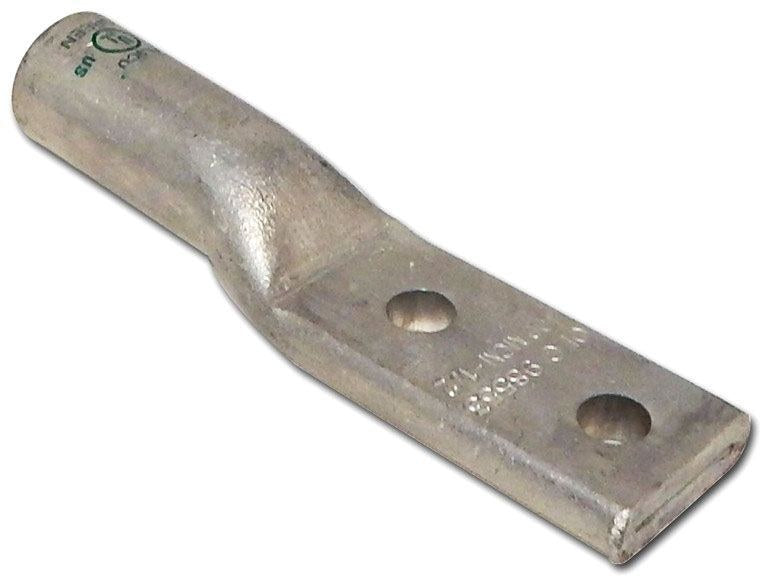

Morris 93109 Aluminum Long-Barrel Compression Lug, 2/0 AWG, 3/8" Stud, 2-Hole

Product Overview

The Morris 93109 is a long-barrel aluminum compression lug for terminating 2/0 AWG stranded conductors to a 3/8" stud using a 2-hole tongue. It is seamless aluminum with electro-tin plating, pre-filled with oxide inhibitor, and marked with an olive die index.

The lug is AL9CU dual-rated for aluminum and copper conductors and is listed to UL 486AB for applications through 35 kV.

Key Features

• Terminates 2/0 AWG stranded conductors to 3/8" studs via a 2-hole tongue
• Long barrel accommodates multiple crimps
• Seamless high-conductivity aluminum body with electro-tin plating
• Pre-filled with oxide inhibitor
• AL9CU dual-rated for aluminum and copper conductors
• Olive color-coded die index and crimp marks printed on the barrel
• UL 486AB listed through 35 kV

What this lug does

The Morris 93109 provides a mechanical and electrical termination for 2/0 AWG stranded conductors to equipment or bussing using a 3/8" stud. The 2-hole tongue is intended for bolted attachment.

• Used to terminate conductors to bus, panels, or equipment with a 3/8" bolt
• Long barrel supports secure conductor retention

Materials and corrosion protection

Constructed from seamless high-conductivity aluminum with electro-tin plating. The barrel is pre-filled with oxide inhibitor and the die index is color-coded (Olive).

• Seamless aluminum body
• Electro-tin plating
• Pre-filled with oxide inhibitor

Installation and crimping guidance

Strip the conductor to the barrel depth, insert fully, and crimp using the olive-coded die corresponding to the die index printed on the barrel. Bolt the tongue to the 3/8" stud using appropriate hardware.

• Strip conductor to barrel depth and insert fully before crimping
• Use the olive die matched to the barrel markings for crimping
• Bolt the 2-hole tongue to the 3/8" stud

Electrical ratings and approvals

This lug is AL9CU dual-rated for aluminum and copper conductors and is listed to UL 486AB for applications through 35 kV.

• AL9CU dual-rated
• UL 486AB listed through 35 kV

Conductor and stud compatibility

Designed to accept 2/0 AWG stranded conductors and to mount on a 3/8" stud. The lug includes a long barrel and a 2-hole tongue.

• Conductor size: 2/0 AWG (stranded)
• Stud size: 3/8"
• Mounting: 2-hole tongue; long barrel

Before You Order

Verify conductor size (2/0 AWG stranded) and stud size (3/8") match your application.

• Confirm conductor is stranded 2/0 AWG
• Confirm stud size is 3/8"

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 93109 Aluminum Long-Barrel Compression Lug, 2/0 AWG, 3/8" Stud, 2-Hole. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
