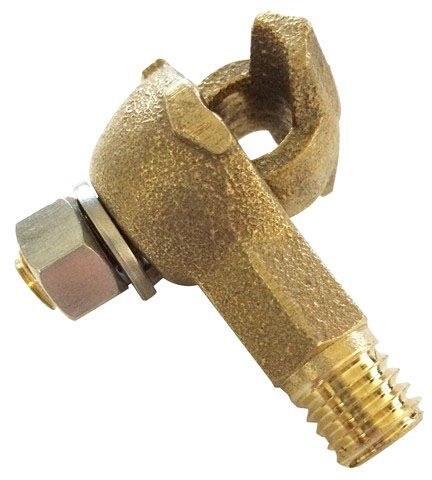

Morris 91906 Transformer Ground Connector, 250 MCM - 6 AWG
Morris 91906 Transformer Ground Connector, 250 MCM - 6 AWG
Regular price
$42.43
Regular price
Sale price
$42.43
SKU:91906
Quantity
Couldn't load pickup availability
Morris's 91906 is a transformer ground connector that bolts to a transformer's 1/2"-13 tapped hole and terminates a 250 MCM - 6 AWG conductor. It is made from high-strength, high-conductivity copper alloy with stainless steel nuts and lock washer.
Key Features
- For Transformers with a 1/2"-13 Tapped Hole
- High-Strength, High-Conductivity Copper Alloy
- Stainless Steel Nuts and Lock Washer
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91906 |
| Type | Transformer Ground Connector |
| Conductor Range | 250 MCM - 6 AWG |
| Mounting | 1/2"-13 Tapped Hole |
| Material | Copper Alloy |
| Hardware | Stainless Steel |
Applications
Used to ground transformers and similar equipment with a 1/2"-13 tapped hole, terminating a 250 MCM - 6 AWG grounding conductor.
Installation
Bolt the connector to the transformer's 1/2"-13 tapped hole, insert the conductor, and tighten the set screw to secure the conductor.
