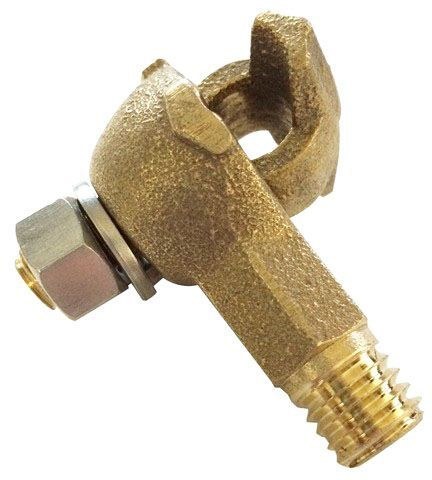

Morris 91904 Transformer Ground Connector, 2/0-8 AWG

(No Ratings)
SKU: 91904
Price: $15.01
Free shipping on orders over $1,500

Description

Product Overview

The Morris 91904 is a transformer ground connector designed to bolt to a transformer's 1/2"-13 tapped hole and terminate a 2/0–8 AWG grounding conductor.

Constructed from a high-strength, high-conductivity copper alloy with stainless-steel nuts and lock washer for corrosion resistance and reliable electrical contact.

Key Features

  • Terminates 2/0–8 AWG conductors
  • Mounts to transformers with a 1/2"-13 tapped hole
  • High-strength, high-conductivity copper-alloy body
  • Stainless-steel nuts and lock washer included
  • Simple bolt-on installation with set screw conductor retention

What this connector does

The Morris 91904 provides a secure electrical grounding termination for transformers and similar equipment. It is intended to be bolted into a transformer's 1/2"-13 tapped hole and hold a grounding conductor sized between 2/0 and 8 AWG.

  • Purpose: ground conductor termination for transformers
  • Conductor range: 2/0–8 AWG

Compatibility and mounting

This connector is specifically made to mount into a 1/2"-13 tapped hole. Confirm the transformer or equipment has this tapped hole size before ordering.

  • Mounting: 1/2"-13 tapped hole (bolt-on)
  • Verify the tapped hole and clearances on the transformer enclosure prior to installation

Materials and hardware

The body is manufactured from a high-strength, high-conductivity copper alloy to provide reliable electrical conductivity. Fastening hardware—nuts and a lock washer—are stainless steel to resist corrosion where hardware is exposed.

  • Body material: copper alloy
  • Hardware: stainless-steel nuts and lock washer

Installation overview

Installation is straightforward: bolt the connector into the transformer's 1/2"-13 tapped hole, insert the appropriate-sized conductor, and tighten the set screw to secure the conductor electrically and mechanically.

  • Bolt connector to 1/2"-13 tapped hole
  • Insert 2/0–8 AWG grounding conductor
  • Tighten set screw to secure conductor

Before You Order

Confirm the transformer's tapped-hole size (1/2"-13) and that the grounding conductor falls within the 2/0–8 AWG range before ordering.

  • Verify transformer has a 1/2"-13 tapped hole and sufficient clearance for bolt-on installation
  • Confirm required conductor AWG size (2/0–8 AWG)
  • Confirm model number (Morris 91904) and quantity required

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 91904 Transformer Ground Connector, 2/0-8 AWG. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU91904; '91904
TypeTransformer Ground Connector
Conductor Range2/0–8 AWG
Mounting Type1/2"-13 tapped hole
MaterialCopper alloy
Included HardwareStainless steel nuts and lock washer
Product TypeTransformer Ground Connector
