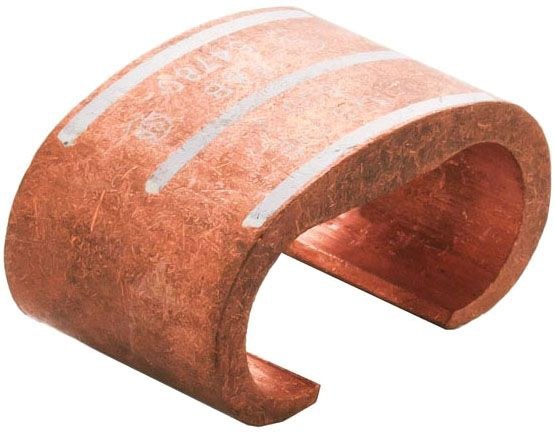

Morris 91822 Heavy Wall Copper C-Tap, 2 AWG, Type C Die

Product Overview

The Morris 91822 is a heavy wall copper C-tap compression connector for copper-to-copper connections. Its run and tap ranges are both 2 AWG, and it uses a Type C die.

Made from heavy wall, high-strength electrolytic copper, the connector is listed to UL 467 and CSA C22.2 No. 41. It is suitable for direct burial in soil and concrete.

Key Features

• For 2 AWG copper run and tap conductors
• Supports tapping, splicing, and stub or pigtail connections
• Heavy wall, high-strength electrolytic copper construction
• Type C die; compression secures the run and tap conductors
• Listed to UL 467 and CSA C22.2 No. 41; suitable for direct burial in soil and concrete

Copper-to-Copper Connection Uses

The Morris 91822 is designed for copper-to-copper tapping, splicing, and stub or pigtail connections. It can secure a run and tap conductor in a single die crimp and allows two continuous parallel conductors.

Conductor Range and Type C Die

Both the run range and tap range are 2 AWG. The specified die type is C, so confirm the conductor size and die designation when selecting this connector for a crimping job.

Material, Listings, and Direct Burial

The C-tap is made from heavy wall, high-strength electrolytic copper. It is listed to UL 467 and CSA C22.2 No. 41 and is suitable for direct burial in soil and concrete.

Compression Installation

Position the run and tap conductors in the C-tap and compress it with a Type C die using a hydraulic or battery-powered crimp tool.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 91822 Heavy Wall Copper C-Tap, 2 AWG, Type C Die. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
